Application:

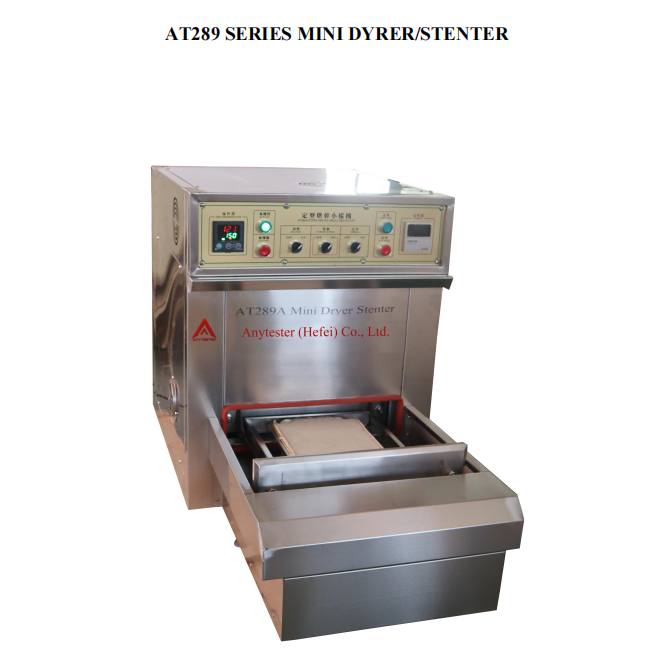

AT289 Series Mini Dryer/Stenter can be used with lab padder and applicable for all labs dyeing, setting, resins baking colors and some other process. It can simulate spot conditions to test the hardness and quality influence of dyes, auxiliaries and finishing auxiliaries.
Features:
★ Drying time is settable.
★ Automatically feeding fabric sample and discharging.
★ Precision temperature control system with cyclic hot air system.
★ Special designed needle frame is applied for both plain stitch cloth and knitted fabric.
★ Needle frame for adjusting tension of warp and weft direction.
★ AT289B equipped with steamer generator.
Technical Specification:
Model | AT289A | AT289B | |
Temperature range | R.T.~ 2500C | ||
Saturated hot steam | Without | With | |
Time range | 0.1 ~ 99.99s/m | ||
Needle frame size | 345mm×420mm | ||
Fabric sample size | Maximum 310×360mm | ||
Effective area | Maximum 280mm×330mm | ||
Water consumption | --- | About 30kg/hour | |
Power supply | AC380V 50Hz, three-phase, five-wire | ||
Blowing motor power | 180W | ||
Electric heating power | 6KW | ||
Dimensions | 1360×730×840mm | 1540×700×1050mm | |
Weight | 120kg | 180kg | |
Standard Configuration:
No. | Item | Quantity |
1. | Main machine | 1set |
2. | Needle frame | 2pcs |
3. | Quality certificate | 1pc |
4. | User manual | 1pc |
5. | Packing list | 1pc |
