Bursting strength tester with Large touch screen control

Min. Order: 1 Set/Sets

Trade Term: FOB,CFR,CIF,DDP,DAP,EXW

Payment Terms: L/C, D/P, T/T, WU

Place of Origin: Anhui, China (Mainland)

Means of Transport: Ocean, Air, Land

Production Capacity: 50 sets/month

Packing: Wooden box

Delivery Date: 2 ~ 4 weeks

Power: Electronic

Usage: Textile Testing Instrument

Brand Name: Anytester

Test method: Diaphragm bursting method

Specimen holder: 7.3cm³(30.5mm)

Pressure range: 0~6000kPa

Resolution: 1kPa

Bursting height accuracy: ±0.1mm

Control speed: Large touch screen with Englishi menu

Test result: 8ml/min~500ml/min, ramdomly-settable

Power supply: AC220V 50Hz1000W

Dimensions: 630*440*675mm

Weight: 150kg

Application:

AT032G Bursting Strength Tester is used to determine the bursting strength and expansion height of all kinds of knitted fabric, nonwoven fabric, leather and geo-textile by hydraulic method.

Standards:

ASTM D3786	ISO13938.1/5077/6330	GB/T 7422
FZ/T 01030, 60019	BS 4768	WOOLMARK TM 29
WSP 30.1	JIS L 1018.6.17

Note: For more standards, please contact us

Features:

★ Large touch screen control, English menu operation and microcomputer automatic control of bursting ;

★ Special thoothed clamping surface with adjustable clamping force, pneumatic clamping; Specimen clamping force and bursting force in the same axis, all-roundly suitable for clamping various materies.

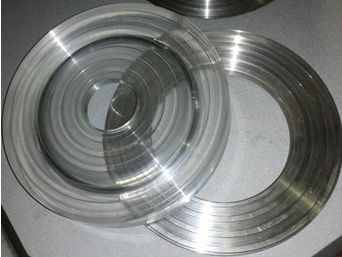

Clamping Surface

★ Interchangeable test areas, complying to the requirements of different standards.

★ With servo driver and motor for acucrately control the hydraulic oil rate of 8~500ml/min,ensuring the bursting time within 20±5s and truly reflecting the sample's bursting property.

★ Abundant test results of bursting strength, bursting force, diaphragm pressure, bursting height and bursting time, convenient for quality controller to comprehend the sample's bursting property.

★ With auxiliary test methods of specified pressure method and specified height method.

★ With printer interface and on-line interface

★ 6 test units changeable: KPa,Kgf/ cm2,atm,mmHg,lb/in2

★ 4 test areas selectable and interchangeable, so it's easy to meet the request for more standard

50 cm2 Test unit 7.3 cm2 Test unit

★ Imported diaphragm from James Heal

★ Lazere height measuring system, ensuring the measurement accuracy of bursting height and no interference.

★ Nice appearance, easy to operate

Technical Specification:

Model	AT032G
Test method	Diaphragm bursting method
Clamping method	Special thoothed clamping surface, pneumatic clamping Specimen clamping force and bursting force in the same axis
Specimen holder	7.3 cm2(Φ30.5mm)
Pressure range	0~6000kPa
Resolution	1KPa
Pressure accuracy	≤±1%
Bursting height range	0.1～70mm
Bursting height accuracy	±0.1mm
Control mode	Large touch screen with English menu
Test speed	8ml/min～500ml/min, ramdomly-settable
Test result	Bursting strength, bursting force, diaphragm force, expansion height and bursting time
Test mode	Constant pressurizating method Specified pressure method Specified bursting height method
Power supply	AC220V, 50Hz, 1000W
Dimensions	630×440×675mm (L×W×H)
Weight	150kg

Standard Configuration:

No.	Item	Quantity
1.	Main machine	1set
2.	Sample holder	1set
3.	Glycerinum	2 bottles
4.	Diaphragm	1 bage (10 pcs)
5.	Printer paper	1 bag
6.	CD of on-line software	1pc
7.	Packing list	1pc
8.	Quality certificate	1pc
9.	User manual	1pc

Optional Configuration:

No.	Item	Quantity
1.
2.
3.
