Carbon Black Content Tester with LED display easy to operate

1900.0~2000.0 USD

Min. Order: 1 Set/Sets

Trade Term: FOB,CFR,CIF,EXW

Payment Terms: Paypal, L/C, D/P, D/A, T/T, WU, Money Gram

Place of Origin: Anhui, China (Mainland)

Means of Transport: Ocean, Air, Land

Production Capacity: 50 sets/month

Packing: Wooden box

Delivery Date: 2 ~ 4 weeks

Power: Electronic

Usage: Textile Testing Instrument

Brand Name: Anytester

Quartz tube size: 25*450mm / 50*450mm

Chamber size: 80*200mm

Heating element: Resistance wire

Length of heating zone: 200mm

Length of constant temperature zone: 100mm

Temperature range: ≤1100℃

Temperature control mode: Intelligent 30 groups programmable

Power supply: 220v 50hz 1.2kw

Dimensions: 340*300*390mm

Weight: 18kg

Application:

AT466 Carbon Black Content Tester is used to determine the carbon black content of polyolefin compositions. The principle is: pyrolysis of a specified quantity of mixture at a specified temperature in a stream of nitrogen for a certain time and calcination at a specified temperature; Calculation of the carbon black content from the difference in mass before and after calcination and pyrolysis.

Standards:

ASTM D1603	ISO 6964	GB/T 2951.41, 13021
JTG E50 T1165

Note: For more standards, please contact us

Features:

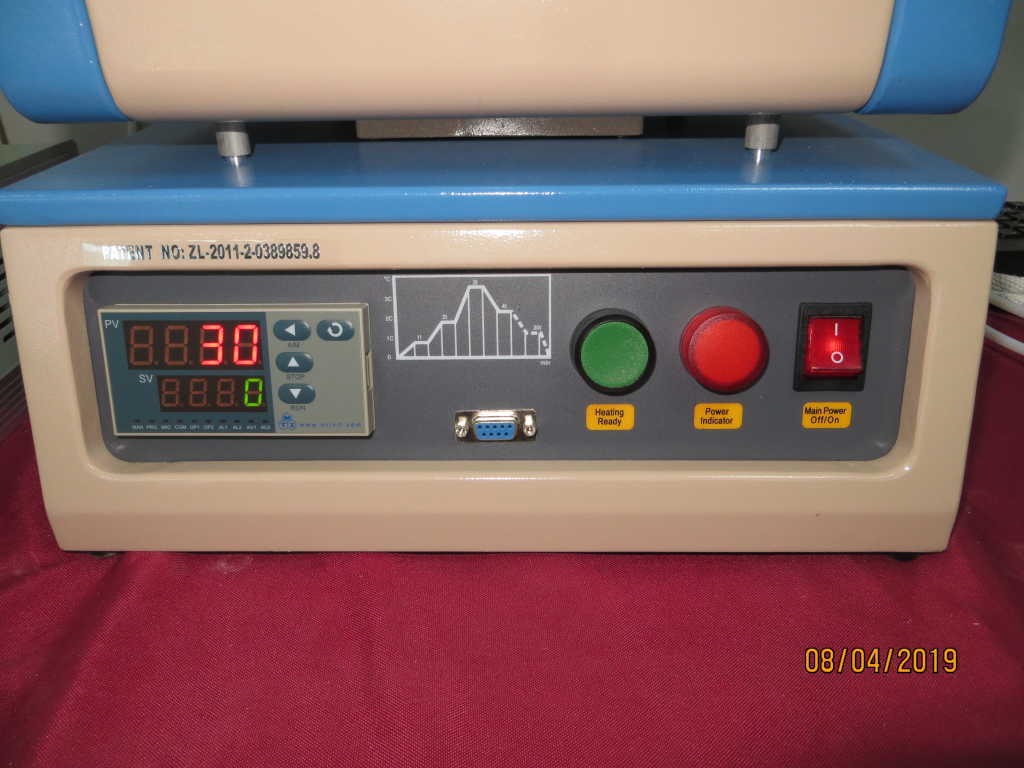

★ Beautiful appearance, LED display, easy to operate

★ Openable furnace door, easy to place specimen

★ High accuracy of temperature, large temperature range, excellent temperature uniformity in the chamber

★ Can set keeping time for constant temperature, high accuracy of keeping constant temperature

★ Can set 30 groups of temperature programs, can set heating temperature, heating speed, keeping time for constant temperature for each program

★ Display multiple parameters such as groups, set temperature, current temperature, heating up time or keeping time for constant temperature

★ Can check set parameters while the furnace working

Technical Specification:

Model	AT466
Quartz tube size	￠25×450mm or ￠50×450mm
Chamber size	￠80×200mm
Heating element	Resistance wire
Length of heating zone	200mm
Length of constant temperature zone	100mm
Temperature range	≤1100℃
Max. temperature	1200℃
Temperature control mode	Intelligent 30 groups programmable
Accuracy of constant temperature	±1℃
Power supply	220V, 50Hz, 1.2kw
Dimensions	340×300×390mm
Weight	18kg

Standard Configuration:

No.	Item	Quantity
1	Main machine	1set
2	Atmosphere device	1set
3	Quartz tube	1pcs
4	Combustion boat	10pcs
5	Plug	2pcs
6	Crucible tongs	1pcs
7	Exhaust hose (1m, 3m)	1pcs each

Optional Configuration:

No.	Item
1.	Electronic balance (100g/0.1mg)
2.	Desiccator
