Computer optional control Rotorless Rheometer

6800.0~7000.0 USD

Min. Order: 1 Set/Sets

Trade Term: FOB,CFR,CIF,DAT,EXW

Payment Terms: L/C, D/P, T/T, WU

Place of Origin: Anhui, China (Mainland)

Means of Transport: Ocean, Air, Land

Production Capacity: 50 sets/month

Packing: Wooden box

Delivery Date: 4 ~ 6 weeks

Power: Electronic

Usage: Others

Brand Name: Anytester

Temperature range: RT+5℃~200℃

Temperature accuracy of die cavity: ≤±0.1℃

Heating time: ≤10min

Temperature compensation rate: Within 15min to reach to set temperature after putting the specimen into die cavity

Torque range: 0-10Nm

Torque resolution: 0.001Nm

The frequency of oscillation: 1.7Hz(100r.min-1)

The angle of oscillation: ±0.5°,±1°

Power supply: AC220V 50Hz

Dim./weight: 625*600*1250mm/240kg

Application:

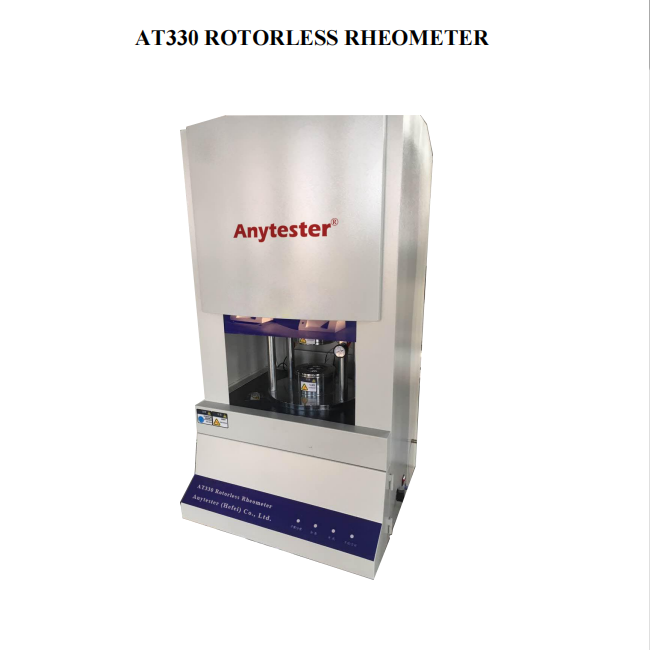

AT330 Rotorless Rheometer is used to determine the vulcanization characteristics of a rubber compound. It can dynamically display temperature curve and curve of shear modulus- vulcanization time under set temperature and pressure. It consists of main machine, temperature determination and control system, sensor, computer, data collector, printer and electrical components.

Standards:

ISO 6502	ASTM D5289	GB/T 16584

ISO 6502

ASTM D5289

GB/T 16584

Note: For more standards, please contact us

Features:

★ A necessary equipment to optimize formula, make production parameters and improve quality of rubber product

★ High accuracy, good repeatability and stability, convenient and practical, it can precisely find out the best vulcanizing time

★ Imported intelligent digital meter, easy to adjust and set, large temperature control range, high accuracy

★ Computer (optional) control, collect, save and save test data, printout test result

★ Test curves can be magnified and compared

★ Windows operation platform to make date processing more accurate

Technical Specification:

Model	AT330
Temperature range	RT+5℃~200℃
Temperature accuracy of die cavity	≤±0.1℃
Heating time	≤10min
Temperature compensation rate	Within 15min to reach to set temperature after putting the specimen into die cavity
Torque range	0-10 Nm
Torque resolution	0.001 Nm
The frequency of oscillation	1.7Hz (100r·min-1)
The angle of oscillation	±0.5°, ±1°
Power supply	AC220V 50Hz
Dimension	625mm×600mm×1250mm
Weight	240kg
