Desktop Ultraviolet Accelerated Weatherometer
  • Desktop Ultraviolet Accelerated Weatherometer
  • Desktop Ultraviolet Accelerated Weatherometer
  • Desktop Ultraviolet Accelerated Weatherometer

Desktop Ultraviolet Accelerated Weatherometer

11500.0~12000.0 USD
Min. Order: 1 Set/Sets
Trade Term: FOB,CFR,CIF,EXW,
Payment Terms: L/C, D/P, T/T, WU
Place of Origin: Anhui, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 50 sets/month
Packing: Wooden box
Delivery Date: 2 ~ 4 weeks
Power: Electronic
Usage: Others
Brand Name: Anytester
Temperature range: RT+5℃~60℃
Test time set range: 1h-99999h
Light source: UVA-340 or UVB-313
UV wavelength range: UVA:315-400nm UVB:280-315nm
Lamp rated life: 1600h
Lamp irradiance(new): 0.9w/m²
Min distance between lamp and specimen: 50mm
Power supply: AC220V 50Hz 1.2kw
Dimensions: 930*460*630mm(D*W*H)
Weight: 72KG

Application:

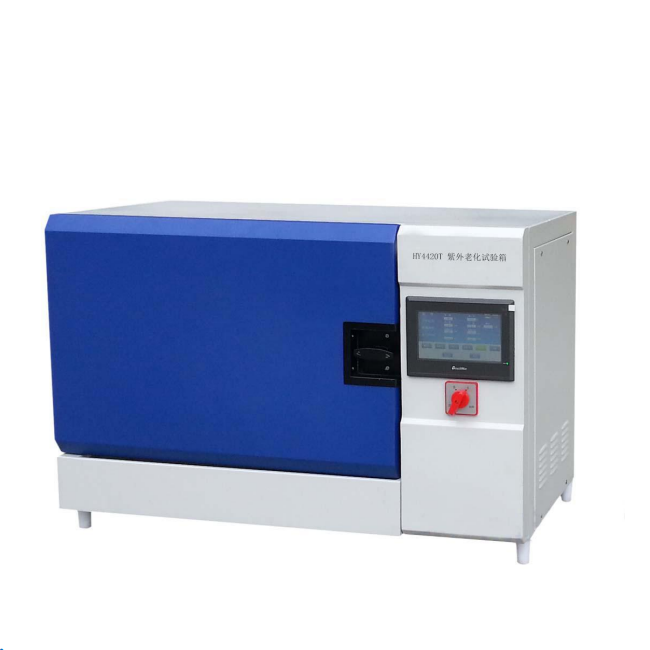

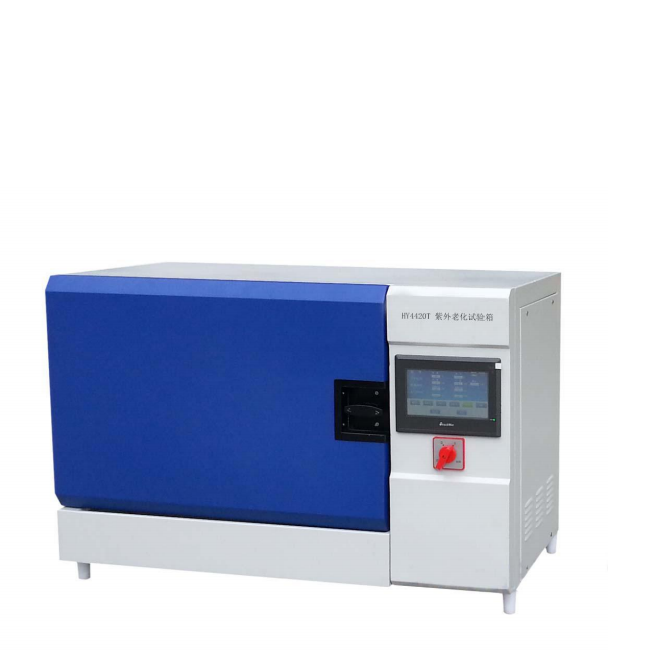

HY4420T Desktop Ultraviolet Accelerated Weatherometer is used to simulate ultraviolet radiation, rain spraying, condensation, temperature and humidity environment for accelerated ageing test of textile, rubber, plastic, paint, coating and other products.



Standards:

ASTM D4329, D499, D4587, D5208, G154, G53

ISO 4892-3, ISO 11507

EN 534 EN 1062-4

BS3320, BS4303, BS2576

GB/T 14522, GB/T 16585, GB/T 16422.3

JIS D0205, SAE J2020

Note: For more standards, please contact us.



Features:

★ It adopts 3pcs of 20w professional UV lamps as light source, it can set total illumination time, chamber temperature, spray time, etc.

★ Full stainless steel chamber, rustless and watertight.

★ With built-in water level switch, it will alarm and the machine will automatically stop when the water level is too low.

★ Large LCD touch screen operation, nice and more convenient.



Technical Specification:

Model

HY4420T

Temperature range

RT+5℃~60℃

Test time set range

1h~99999h

Spray time set range

1min~99999min

Spray interval set range

1min~99999min

Light source

UVA-340 or UVB-313

UV wavelength range

UVA: 315~400nm

UVB: 280~315nm

Lamp rated life

1600h

Lamp irradiance (new)

0.9w/m2

Min. Distance between lamp and specimen

50mm

Speed of sample rack

3.7cpm

Spraying capacity

2L/min

Specimen size

150mm×70mm

Power supply

AC220V, 50Hz, 1.2kw

Dimensions

930mm×460mm×630mm (D×W×H)

Weight

72kg



Standard Configuration:

No.

Item

Quantity

1

Main machine

1set

2

UVB lamp

3pcs

3

Sample support

18pcs

4

Packing list

1pc

5

Quality certificate

1pc

6

User manual

1pc



Optional Configuration:

No.

Item

1

UVB lamps

2

UVA lamps

3

Sample support
