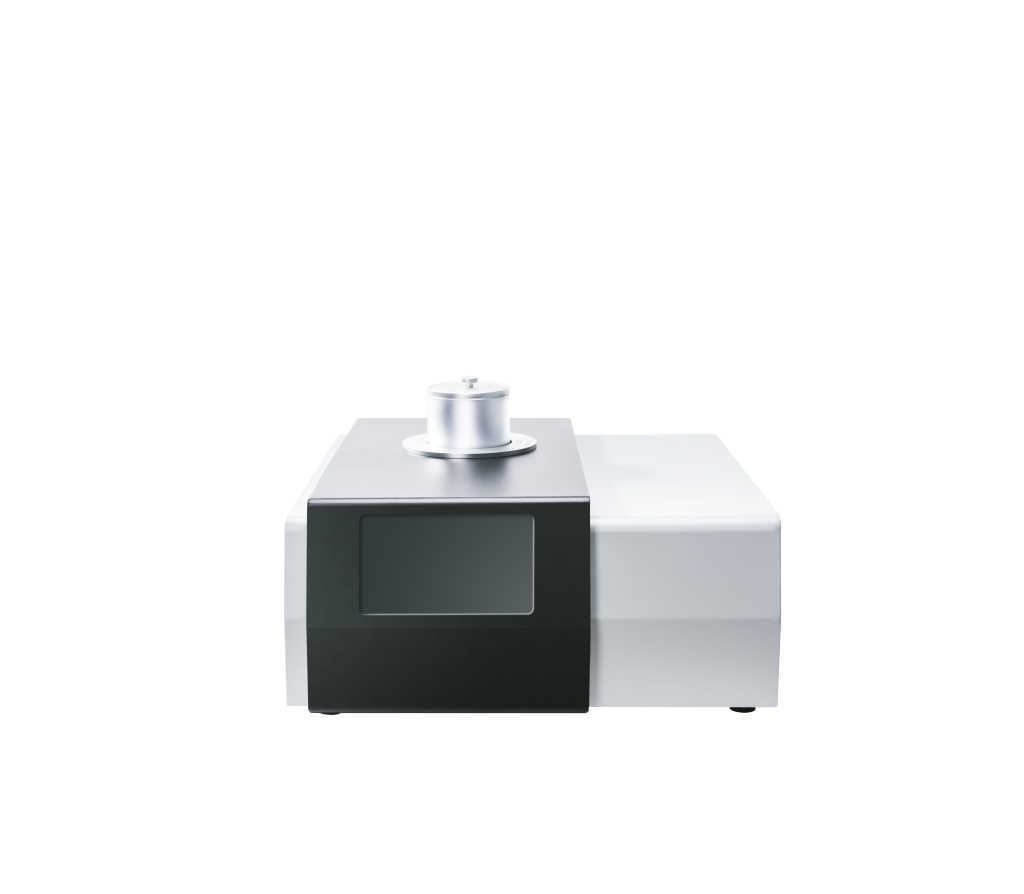

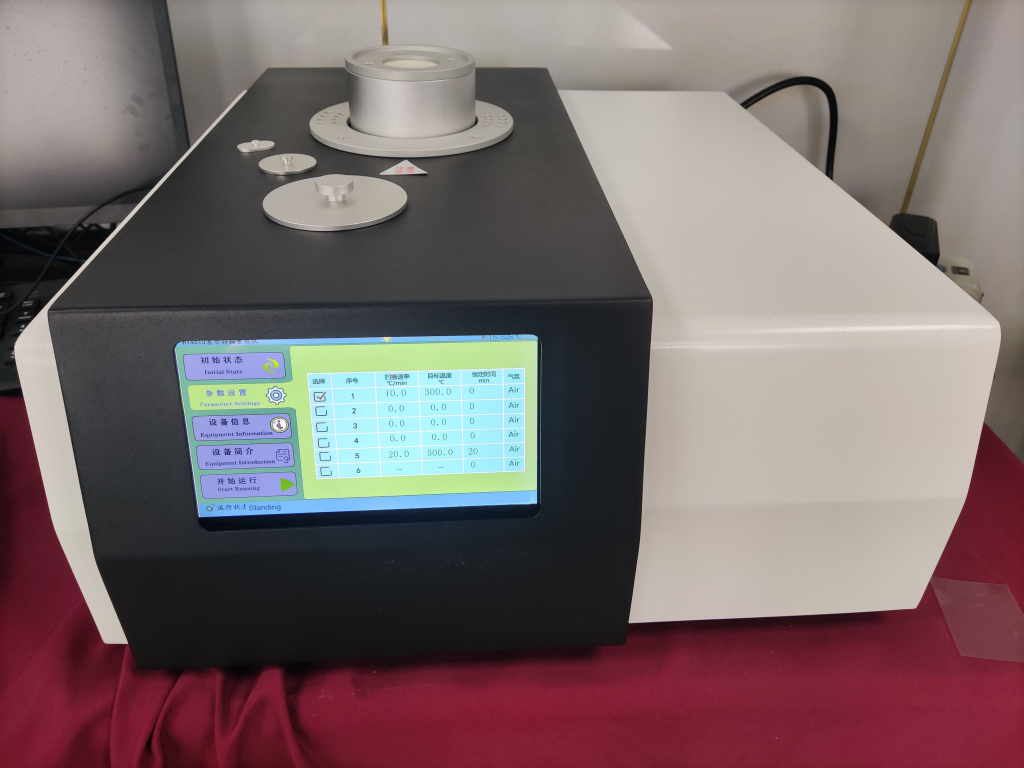

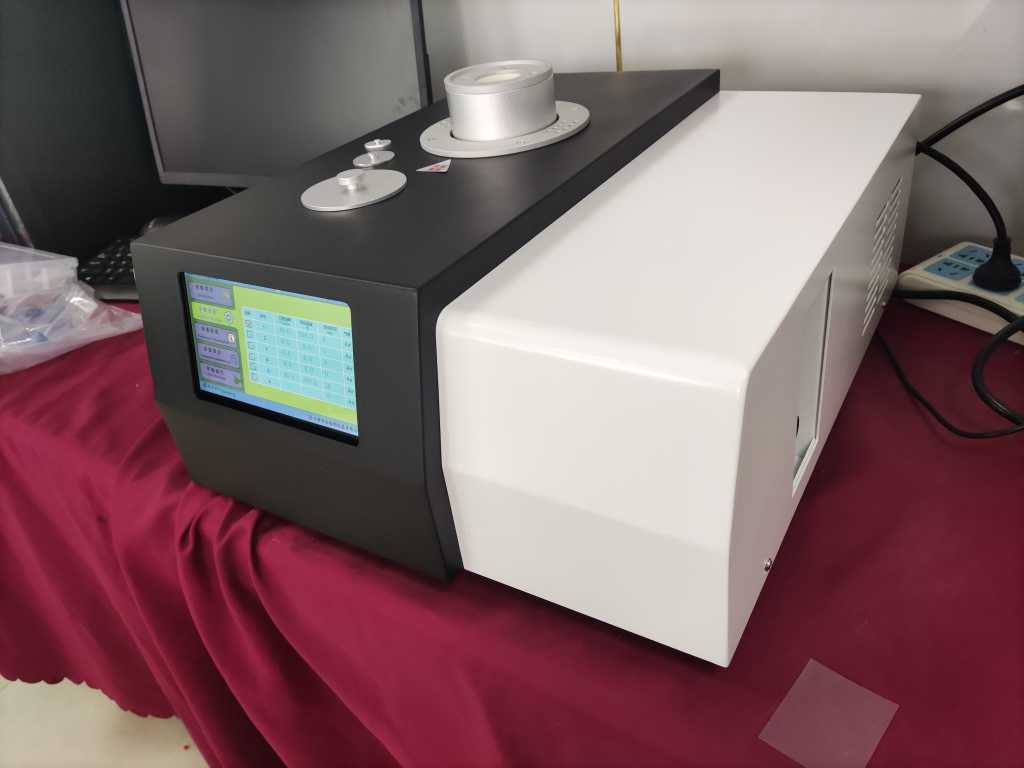

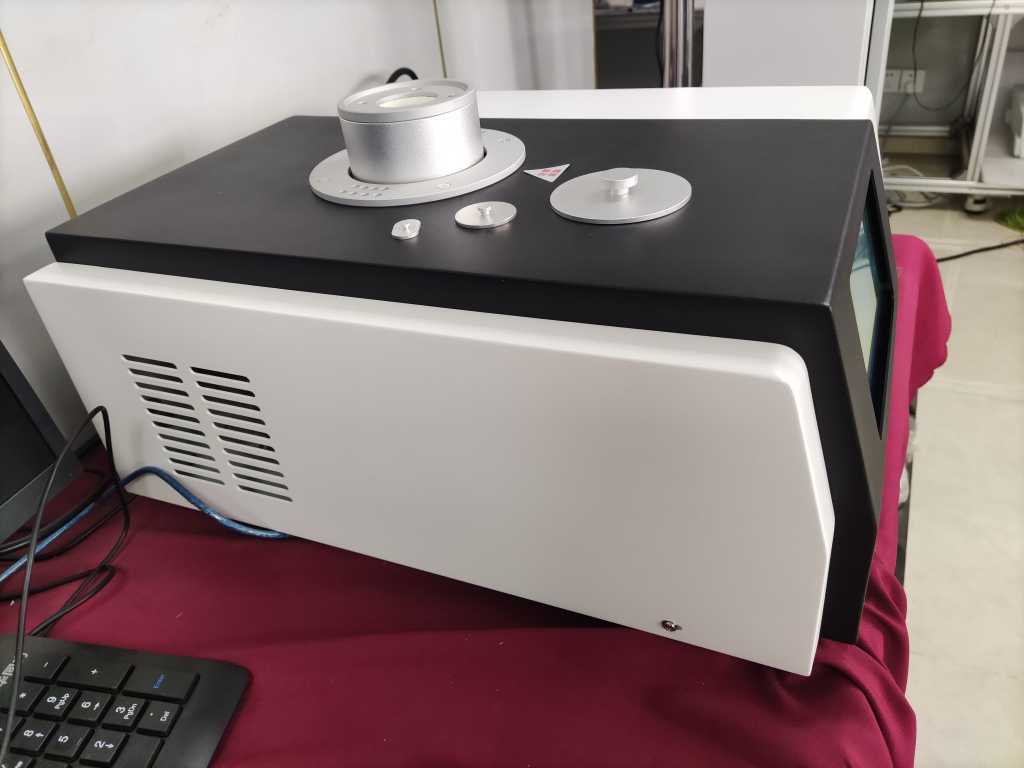

Differential Scanning Calorimeter (DSC)

Min. Order: 1 Set/Sets

Trade Term: FOB,CFR,CIF,DAT,FAS,EXW,

Payment Terms: L/C, T/T, WU

Place of Origin: Anhui, China (Mainland)

Means of Transport: Ocean, Air, Land

Production Capacity: 100 sets/month

Packing: Wooden box

Delivery Date: 2 ~ 4 weeks

Power: Electronic

Usage: Plastic Testing Machine

Brand Name: Anytester

DSC range: 0~±600mW

Temperature range: RT~600℃,air cooling (standard configuration)

Heating speed: 0.1~100℃/min

Temperature resolution: 0.01℃

Temperature fluctuation: ±0.01℃

Temperature repeatability: ±0.1℃

Gas flow: 0-300ml/min

Display mode: LCD touch screen&PC softeware

Date interface: USB

Power suuply: AC220V 50Hz

Application:

AT451 Differential Scanning Calorimeter (DSC) is used to determine and research the melting and crystallization process, glass transition temperature, oxidation induction time (OIT), reaction heat, heat enthalpy, melting point, phase transition, etc.

Principle:

The difference between the heat flux into a test specimen and that into a reference specimen is measured as a functio of temperature and time, while the test specimen and the reference specimen are subjected to a controlled temperature programmer under a specified atmosphere.

Standards:

ISO 11357	ASTM E794	GB/T 13464, 19466

ISO 11357

ASTM E794

GB/T 13464, 19466

Note: For more standards, please contact us.

Features:

★ Suitable for solid, powder and liquid samples, except gas sample.

★ LCD display, touch screen operation.friendly operation interface.

★ In-built atmosphere device, can simultaneously connect with Nitrogen and Oxygen, automatic switchover. With USB cable to connect machine to computer.

★ Main machine control and software control, friendly operation interface, easy to operate.

★ With gas flow meter, accurate to control the gas flow.

★ Small furnace, high accuracy of temperature control, the temperature can be RT~600℃. Also, liquid nitrogen cooling system can be optional, the temperature can be -100 ~ 600℃ or -20 ~ 600℃. ★ Two user interface on software, one is for DSC test, the other is for OIT test.

★ Real-time record and display DSC-Temp curve or DSC-time & Temp-time curve.

★ Full equipped with accessories, convenient and easy to test.

★ Chinese or English operation system can be selected.

★ It with multiple groups of thermocouples, one group to test the sample temperature, one group to test the internal ambient temperature of the instrument.

Technical Specification:

Model	AT451
DSC range	0～±600mW
Temperature range	RT~600℃, air cooling (standard configuration)
Heating speed	0.1~100℃/min
Temperature resolution	0.01℃
Temperature fluctuation	±0.01℃
Temperature repeatability	±0.1℃
DSC resolution	0. 01μW
DSC accuracy	0.01μW
DSC sensitivity	0.001μW
Gas flow	0-300ml /min
Display mode	24bit color, 7 inch LCD touch screen
Temperature control mode	Heating up, keeping temperature, cooling down (program control)
Display mode	LCD touch screen & PC softeware
Data interface	USB
Power supply	AC220V, 50Hz

Standard Configuration:

No.	Item	Quantity
1.	Main machine	1set
2.	Test software	1set
3.	Atmosphere device	1set
4.	Furnace cover	1set
5.	Ceramic crucible	1bag/100pcs
6.	Aluminum crucible	1bag/100pcs
7.	Tin particle	1bag
8.	Rubber pipette bulb	1pc
9.	Tweezers	1pc
10.	Specimen spoon	1pc
11.	Connecting pipe	1set
12.	Power cord	1pc
13.	Fuse (10A)	5pcs
14.	Packing list	1pc
15.	Quality certificate	1pc
16.	User manual	1pc
