Application:

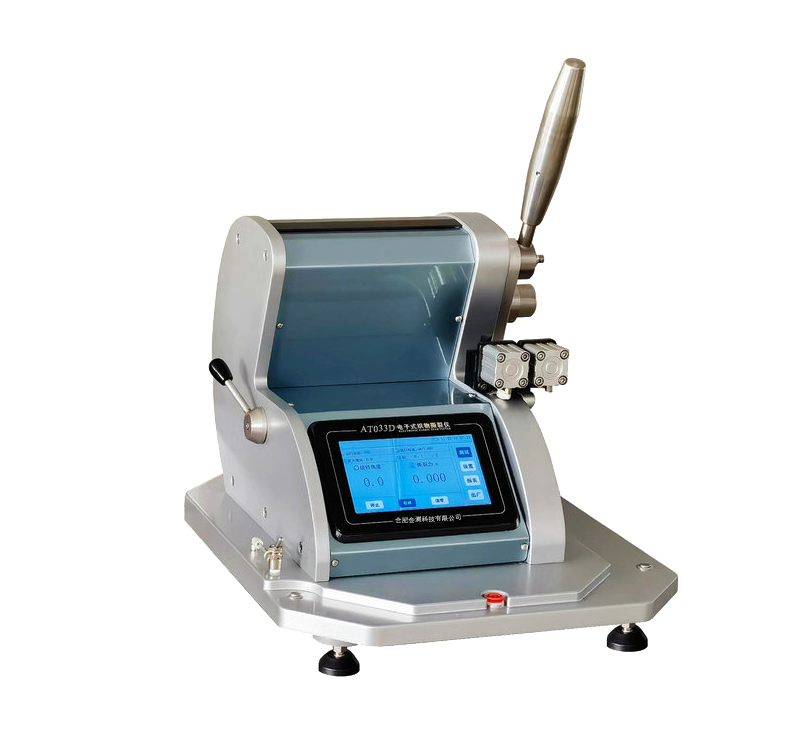

AT033D Digital Elmendorf Tearing Tester is used to determine the ballistic tearing strength of textiles, paper, board and film etc.
Standards:
ASTM D1424, 5734, 1922-03a, ASTM D689 | ISO13937.1, 1974, 4674.2, 9290 | DIN 53862, DIN EN 21974 |
BS 4253, 4468 | JIS L1096 | GB/T 3917.1 |
FZ/T 60006, FZ/T75001 | TAPPI T414 | NEXT 17, M&S P29 |
Note: For more standards, please contact us
Technical Specification:
Model | AT033D |
Range | 0~16N, 0～32N, 0～64N, 0～128N |
Accuracy | ±0.5% F.S |
Display unit | N. cN, kgf, gf, lbf |
Max. Sample thickness | 5mm |
Slit length | 20mm±0.2mm |
Tearing distance | 86mm (sample tearing length 43mm) |
Sample size | 100*63mm |
Jaw gauge | 2.8±0.2mm |
Working air pressure | 0.5~0.7MPa |
Power supply | AC220V±10%, 50Hz, 100W |
Dimensions | 450mm*600mm*650mm |
Weight | 50kg |
Standard Configuration:
No. | Item | Quantity |
1. | Main machine | 1set |
2. | Software | 1 copy |
3. | Weights (1250g, 2500g, 5000g, 10000g) | 1set |
4. | Sample plate | 1pc |
5. | Calibrate weight (4N, 8N, 16N, 32N) | 1set |
6. | Quality certificate | 1pc |
7. | User manual | 1pc |
8. | Packing list | 1pc |
