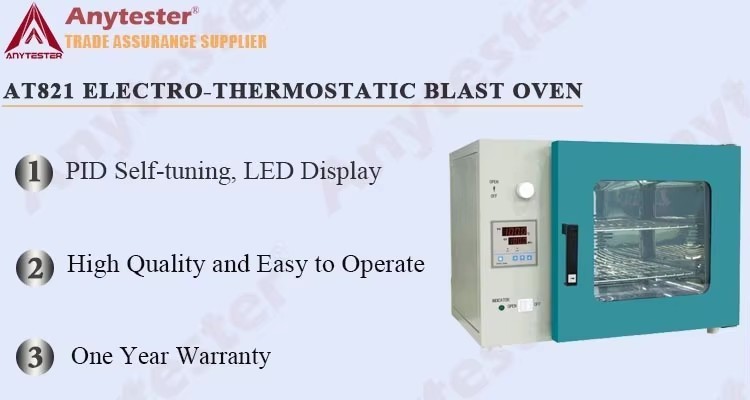

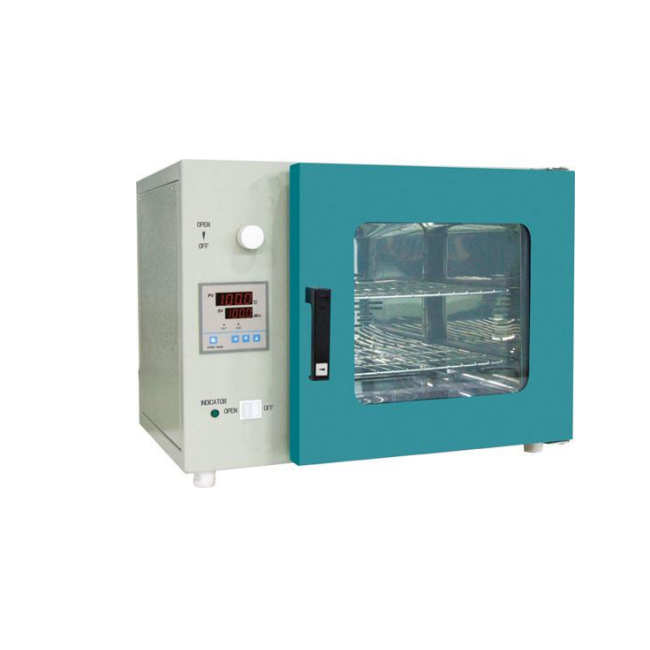

Electro-thermostatic blast oven (Horizontal)

Min. Order: 1 Set/Sets

Trade Term: FOB,CFR,CIF,DAT,EXW,

Payment Terms: L/C, D/P, T/T, WU

Place of Origin: Anhui, China (Mainland)

Means of Transport: Ocean, Air, Land

Production Capacity: 500 sets/month

Packing: Wooden box

Delivery Date: 10~20 days

Power: 500w

Usage: Plastic Testing Machine

Brand Name: Anytester

Temperature range: RT+10~200℃ or RT+10~250℃

Temperature accuracy: 0.1℃

Temperature fluctuation: ±0.5℃

Dimensions of working chamber: 300*300*270mm

Sample supply: 2pcs

Timing range: 1~9999min

Power supply: 220v 50hz

Dimensions: 500*450*440mm

Weight: 55kgs

Application:

AT821 Series Electro-Thermostatic Blast Oven (Horizontal) is used to determine the dimension change of plastic material, pipe, sheet, fittings after heating in the set temperature.

Feature:

★ Micro-computer control temperature system, PID self-tuning, LED display

★ The housing adopts 1.5mm thick cold-roll steel sheets with electrostatic powder coating

★ The inner material adopts 1.2mm mirror stainless steel plate

★ Thermal insulation layer adopts super fine heat-resistant glass fiber cotton

★ Double-layer tempered glass observation window, excellent insulation effect and easy to observe the samples in the chamber

★ With adjustable air discharge pipe to adjust the air inflow and air output in the chamber

Technical Specification:

Model	AT821A	AT821B		AT821C	AT821D
Temperature range	RT+10~200℃ or RT+10~250℃
Temperature accuracy	0.1℃
Temperature fluctuation	±0.5℃
Dimensions of working chamber (mm)	300×300×270	420×350×350		550×350×550	600×550×600
Sample support	2pcs
Timing range	1~9999min
Power supply	220V 50Hz
Power	500w	750w	1500w		2000w
Dimensions (mm)	500×450×440	710×520×520	840×530×730		890×730×780
Weight (kg)	55	65	75		85
