Factory direct sale Hydrostatic head tester

Min. Order: 1 Set/Sets

Payment Terms: L/C, T/T, WU

Place of Origin: Anhui, China (Mainland)

Means of Transport: Ocean, Air, Land

Production Capacity: 50 sets/month

Packing: Wooden box

Delivery Date: 2 ~ 4 weeks

Power: Electronic

Usage: Textile Testing Instrument

Brand Name: Anytester

Test diameter: 113mm

Test area: 100cm³

Resolution: 0.01kpa

Measuring accuracy: ≤±0.5%F.S

Water pressure rising rate: 0.5~50kPa/min(50-5000mmH2O/min)digital setting

Timing: 0~9999999.9

Application:

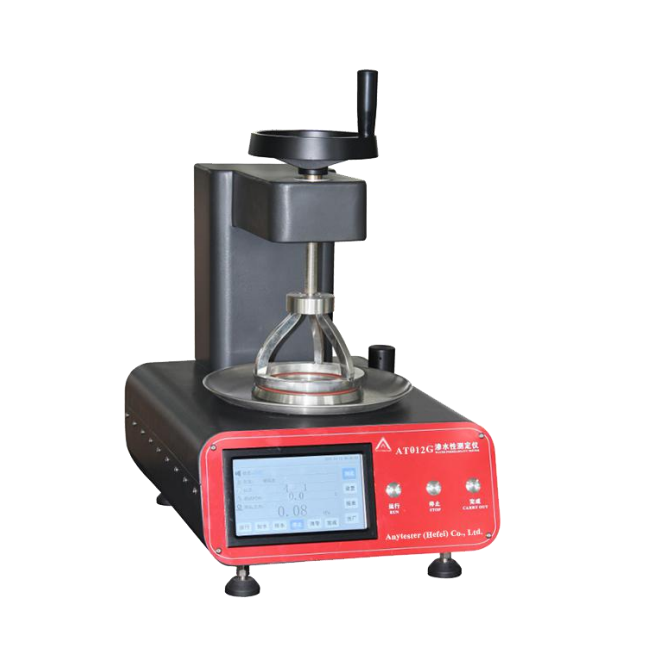

AT012G Hydrostatic Head Tester is used to determine the resistance of fabric to water penetration under pressure while firmly clamped in the test ring of standard area, by means of dynamic test method and static test method.

Standards:

AATCC 127	ISO 811	BS EN 20811
BS 3321, 3424-26	JIS L 1092A	ERT 120-2-02
GB/T 4744	FZ/T 01004

Note: For more standards, please contact us

Features:

★ Microcomputer control, digital setting, touch LCD operation

★ Adopt high precision pressure sensor, more accurate

★ 4 kinds of pressure range select-able:kPa, mmH2O, mmHg, mBar

★ Built-in two test modes: supercharge, constant pressure & timing, constant pressure & setting time, deflection, relaxation and leakage.

Technical Specification:

Model	AT012G-5	AT012G-10	AT012G-30
Test ring diameter	113mm
Test area	2500px2
Measuring range	0 ~ 50kPa (5mH2O)	0 ~ 100kPa (10mH2O)	0 ~ 300kPa (30mH2O)
Resolution	0.01kPa
Measuring accuracy	≤±0.5% F•S
Water pressure rising rate	0.5～50kPa/min(50～5000mmH2O/min), digital setting
Timing	0～9999999.9
Timing accuracy	±0.1S
Test unit	kPa, mmH2O, mmHg, mBar selectable
Water tank capacity	1500ml
Power supply	AC220V±10%, 50Hz
Power	250w
Dimensions	380×480×460mm
Weight	25kg
