Application:

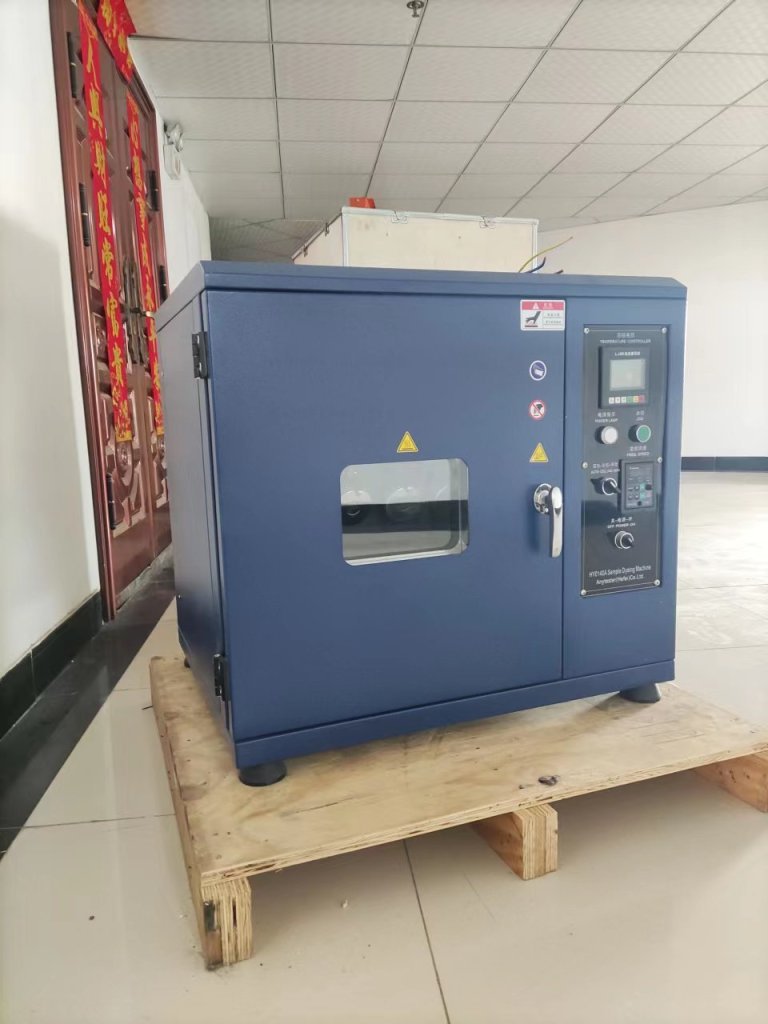

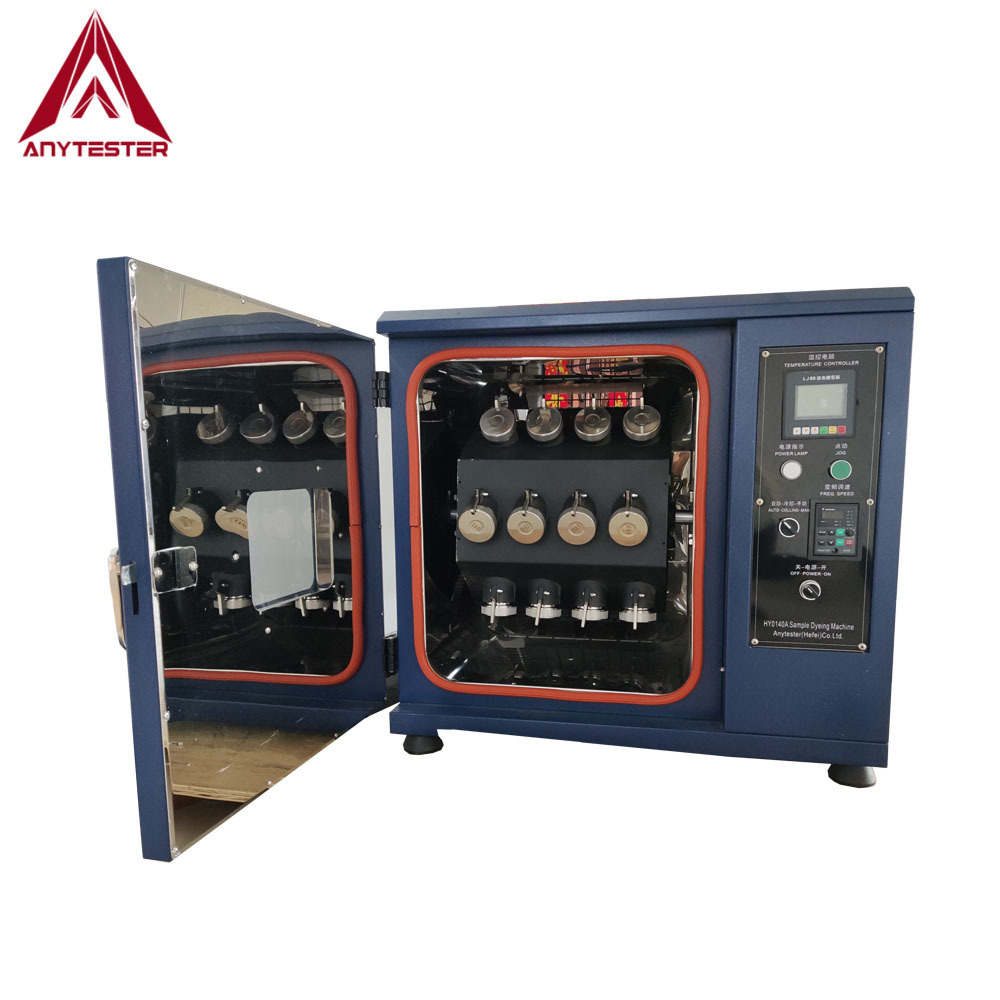

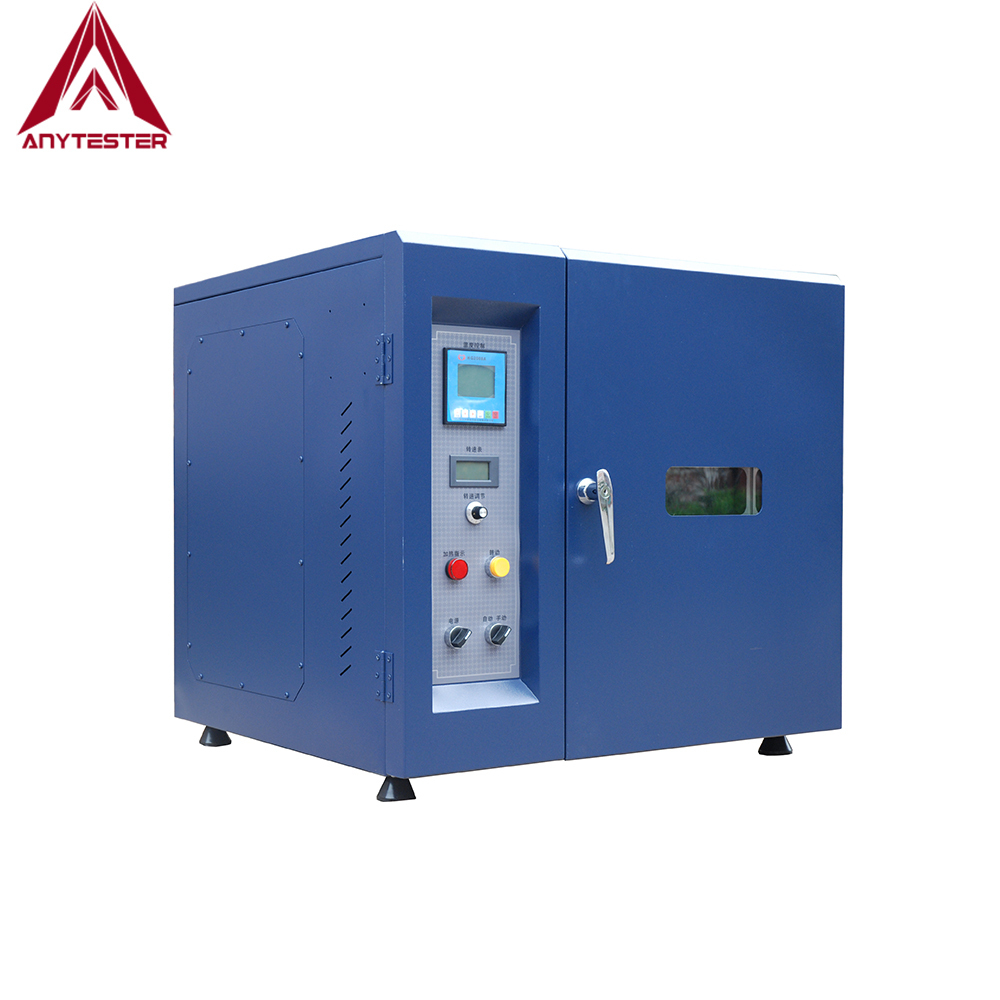

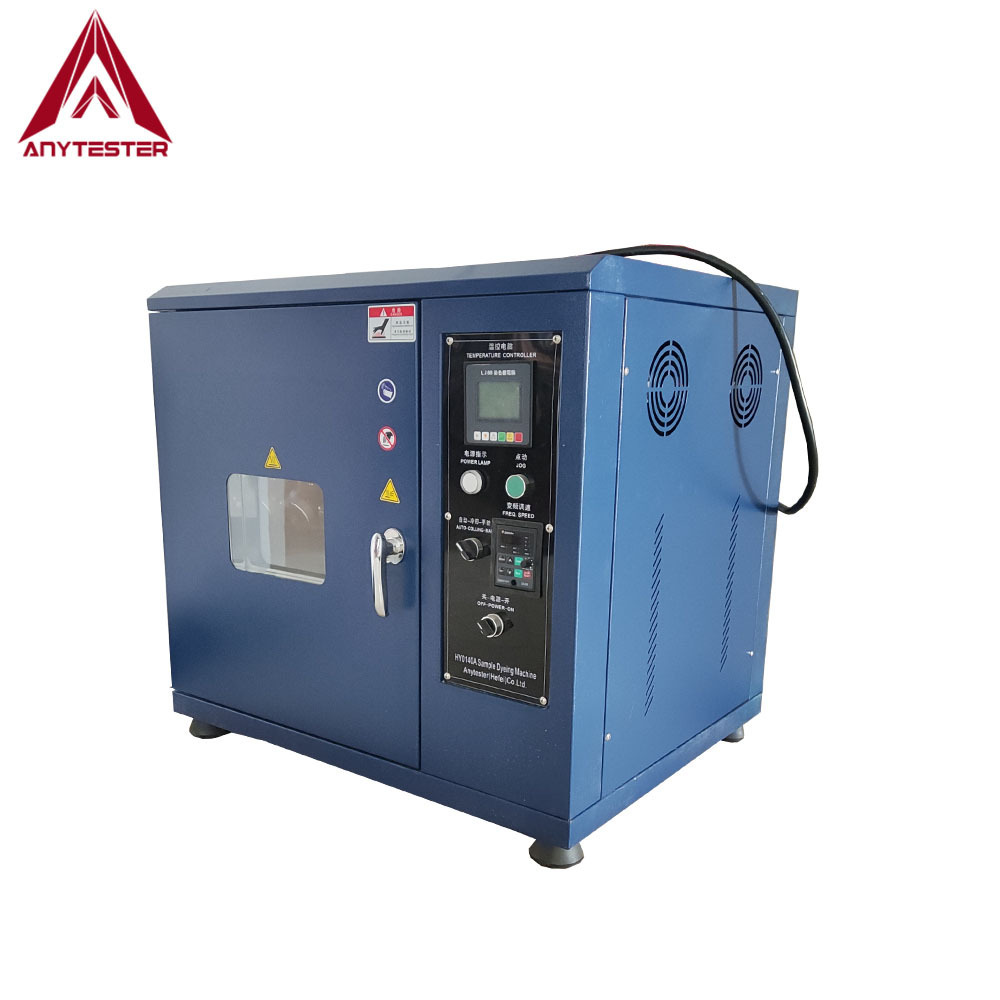

AT272 Series Infrared Lab Dyeing Machine (original model HY0140) is the newest infrared lab dyeing machine. It combines the advantages of common infrared machines and high temperature glycerol machines; also it overcomes their deficiencies of large material consumption and pollution.
Features:
★ Intelligent design for chemical lid, easy to add dose chemicals during the dyeing process without opening the lid (optional)

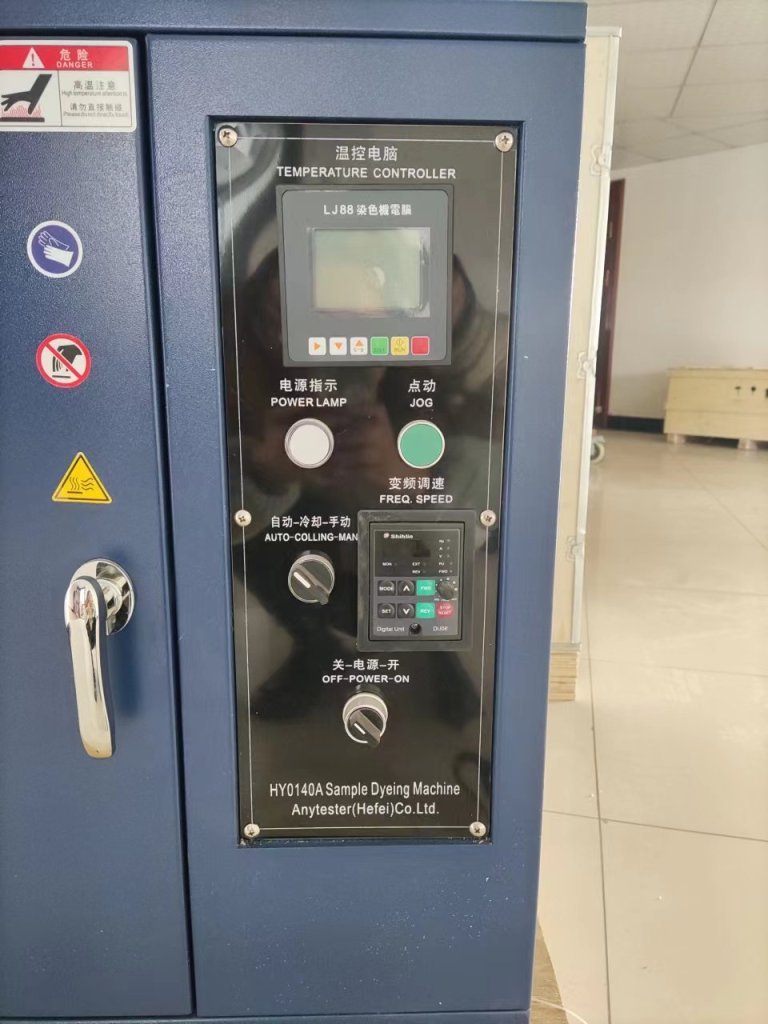

★ Equipped with a programmable intelligent computer control
★ Up to 64 test program settable
★ Adopt solid state relay to control temperature, makes it more accuracy and uniform
★ It use infrared heating system which is low power consumption, no smoking pollution and loss of glycerol, it has good thermal insulation effect and is effective in saving energy and costs.

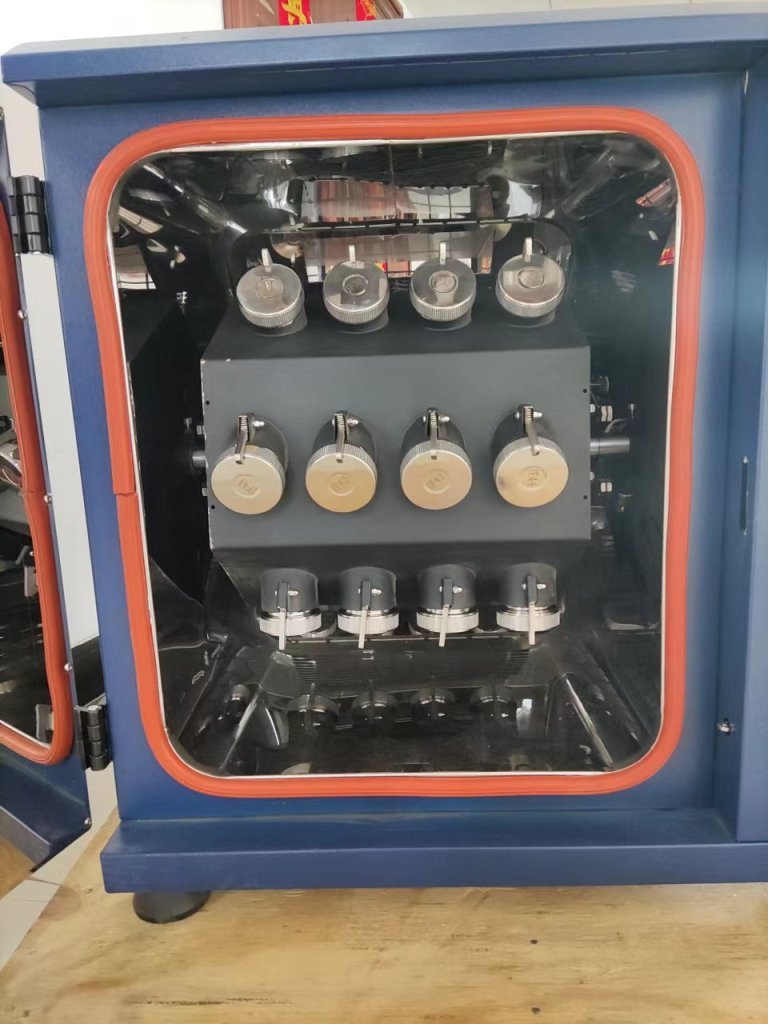

★ 360o tumbling rotation make the dyeing more uniform and is widely used for all fabric
★ It used air cooling system without using water and cut down the cost.
★ It can work at different liquor ratio from 1:5 to 1:30. It can be matched with spray dyeing machine.
★ The body is made of stainless, good appearance and durable.
★ Different working position and dyeing pot volume selectable.
Technical Specification:
Model | AT272 Series |
Dyeing pot numbers | 12, 16, 18, 24 selectable |
Dyeing pot volume | 200ml, 300ml, 350ml, 450ml,500ml selectable |
Temperature range | RT.~ 140oC |
Max. heating rate | 0.1 ~9.9oC/min |
Temperature accuracy | ±0.5 |
Liquor ratio | 1:5 ~ 1:30 |
Heating medium | 6 IR lamps |
Heating power | 4.8kw for 12 pots machine 5.4kw for 24 pots machine |
Rotation speed | 0 ~ 50 rpm |
Drive system | Delta motor 250W |
Heating system | Infrared |
Cooling system | Force air cooling |
Power supply | 380V, 50Hz |
Dimensions | 700*750*750mm (12 pots machine) 800*750*750mm (24 pots machine) |
Weight | 120kg (12 pots machine) 136kg (24 pots machine) |
Standard Configuration:
No. | Item | Quantity |
1. | Main machine | a1set |
2. | Dyeing pot(420ml for fabric) | 12, 16, 18 or 24 pcs |
3. | Quality certificate | 1pc |
4. | User manual | 1pc |
5. | Packing list | 1pc |
Optional Configuration:
No. | Item |
1. | Dyeing pot (300ml) |
2. | Dyeing pot (350ml) |
3. | Dyeing pot (420ml) |
4. | Dyeing pot (500ml) |
5. | Customized dyeing pots |
6. | Rotation frame with different dyeing positions |
