Factory direct sale bursting strength tester

Min. Order: 1 Set/Sets

Trade Term: FOB,CFR,CIF,DAT,FAS,DDP,EXW

Payment Terms: L/C, D/P, T/T, WU

Place of Origin: Anhui, China (Mainland)

Means of Transport: Ocean, Air, Land

Production Capacity: 50 sets/month

Packing: Wooden box

Delivery Date: 2 ~ 4 weeks

Power: Electronic

Usage: Textile Testing Instrument

Brand Name: Anytester

Specimen holder: 7.3cm²(30.5mm),50cm²(79.8mm)interchangeable

Pressure range: 1-10MPa

Resolution: 3KPa

Pressure accuracy: ≤±2%

Bursting height range: 0.1-75mm

Bursting height accuracy: ±0.1mm

Clamping force of upper holder: >690kPa

Power supply: AC220V 50Hz

Dimensions: 550*450*700mm

Weight: 125kg

Application:

HY032E Bursting Strength Tester is used to determine the bursting strength of all kinds of textile by hydraulic method.

Standards:

ASTM D3786	ISO13938.1/5077/6330	GB/T 7422
FZ/T 01030, 60019	BS 4768	WOOLMARK TM 29
WSP 30.1	JIS L 1018.6.17

Note: For more standards, please contact us

Features:

★ Microcomputer control, LCD display, touch screen control

★ Special design clamp to hold sample firm

★ With analog type pressure meter to display the pressure applied on the specimen

★ With printer interface to print test report

★ Stepless settable test speed can be selectable in one machine

★ Adopt 85% glycerin as pressurized medium

★ Provided with high quality rubber diaphragm

★ Professor pc software to show test result including bursting strength, bursting pressure, bursting height and bursting time etc.

★ 4 test models selectable: constant bursting speed, constant pressure, constant expansion rate, constant time.

★ 6 test units changeable: KPa,Kgf/ cm2,atm,mmHg,lb/in2

★ 4 test area selectable and interchangeable, so it's easy to meet the request for more standard

7.3cm² Test unit

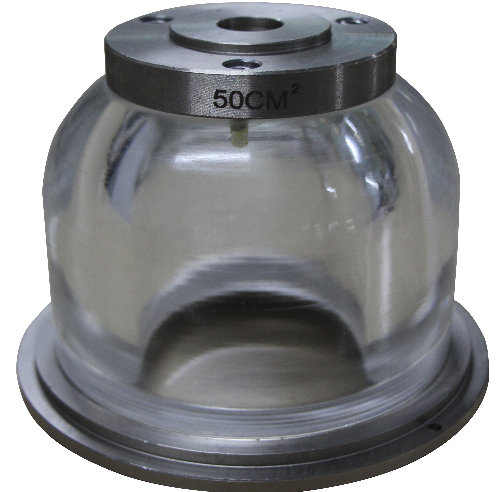

50cm² Test unit

★ Imported diaphragm from James Heal

★ Nice appearance, easy to operate

Technical Specification:

Model	HY032E-2	HY032E-10
Specimen holder	7.3 cm2(Φ30.5mm), 50 cm2(Φ79.8mm)interchangeable
Pressure range	0~2MPa	1 ~ 10MPa
Resolution	1KPa	3KPa
Pressure accuracy	≤±2%
Bursting height range	0.1～75mm
Bursting height accuracy	±0.1mm
Clamping force of upper holder	＞690kPa
Test speed	20ml/min～600ml/min settable
Test speed accuracy	±10%
Power supply	AC220V, 50Hz
Dimensions	550×450×700mm
Weight	125kg

Standard Configuration:

No.	Item	Quantity
1.	Main machine	1set
2.	Diaphragm	2pcs
3.	Printer paper	1 bag
4.	Wrench for specimen mounting	1pc
5.	Packing list	1pc
6.	Quality certificate	1pc
7.	User manual	1pc
