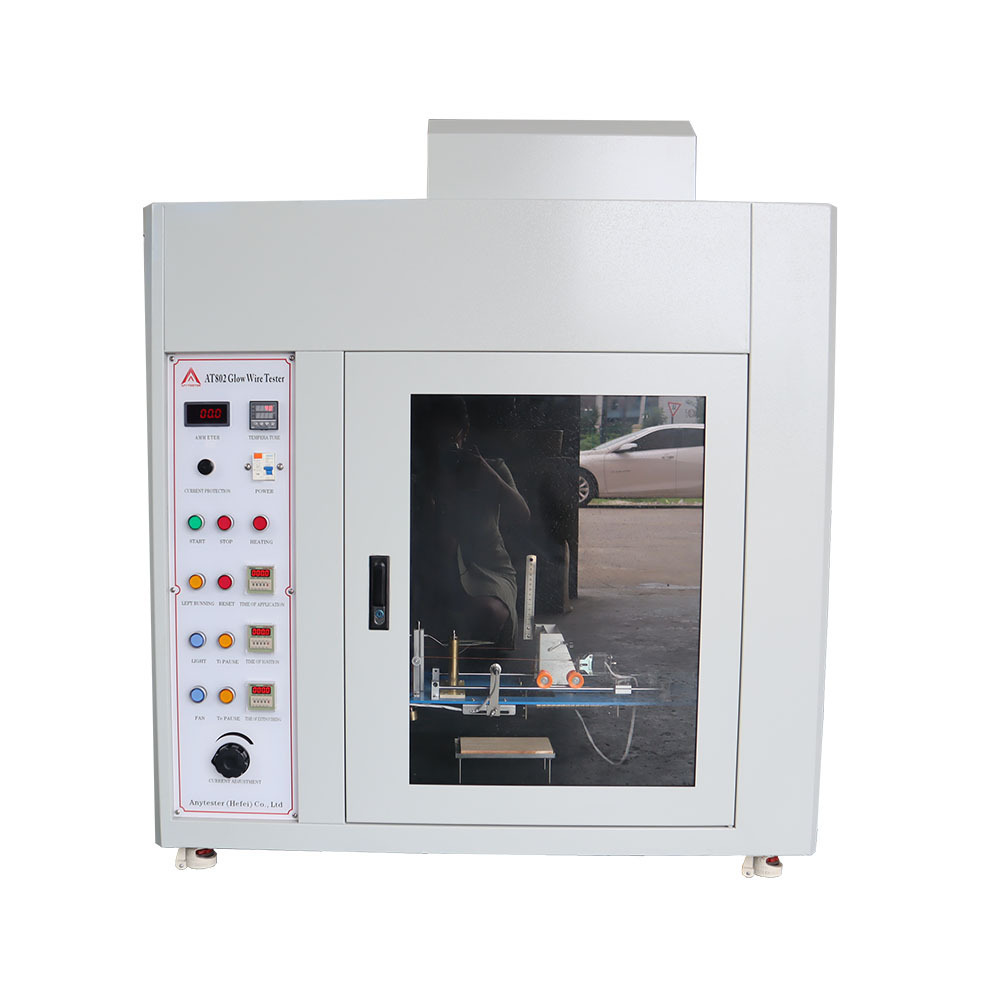

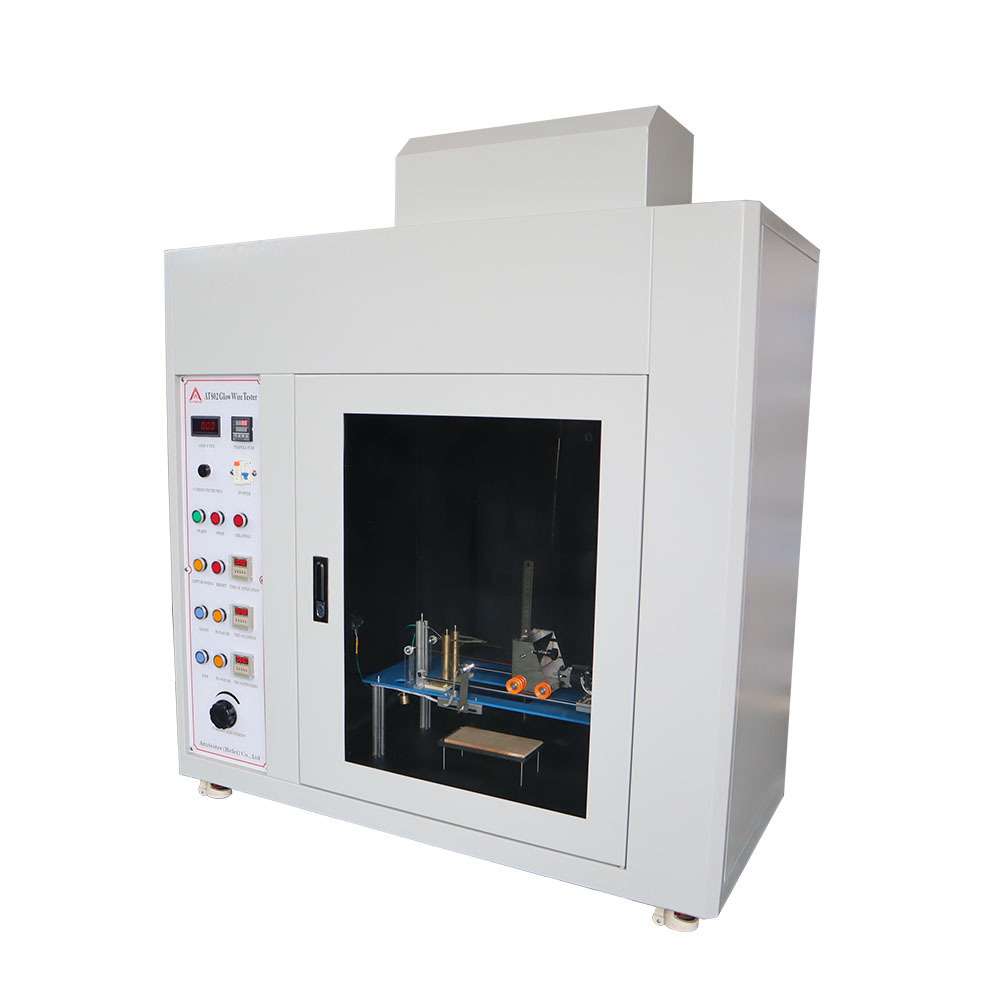

Glow wire tester using digital instrument conttreol system

2000.0~2200.0 USD

Min. Order: 1 Set/Sets

Trade Term: FOB,CFR,CIF,DAT,EXW

Payment Terms: L/C, D/P, T/T, WU

Place of Origin: Anhui, China (Mainland)

Means of Transport: Ocean, Air, Land

Production Capacity: 500 sets/month

Packing: Wooden box

Delivery Date: 10~20 days

Power: Electronic

Usage: Plastic Testing Machine

Brand Name: Anytester

Glow wire: 4mm±0.04mm Ni/Cr (80/120)

Glow wire temperature: 500℃~1000℃

Test pressure: 1.0N±0.1N

Max iron depth: 7mm±0.5mm

Sample moving speed: 10mm/s~25mm/s

Test time: 1s~999.9s

Test space: 0.5m³

Bsckground illumination: ≤20Lx

Power supply: AC220V 50Hz

U-type hot wire head: 1 set

Application:

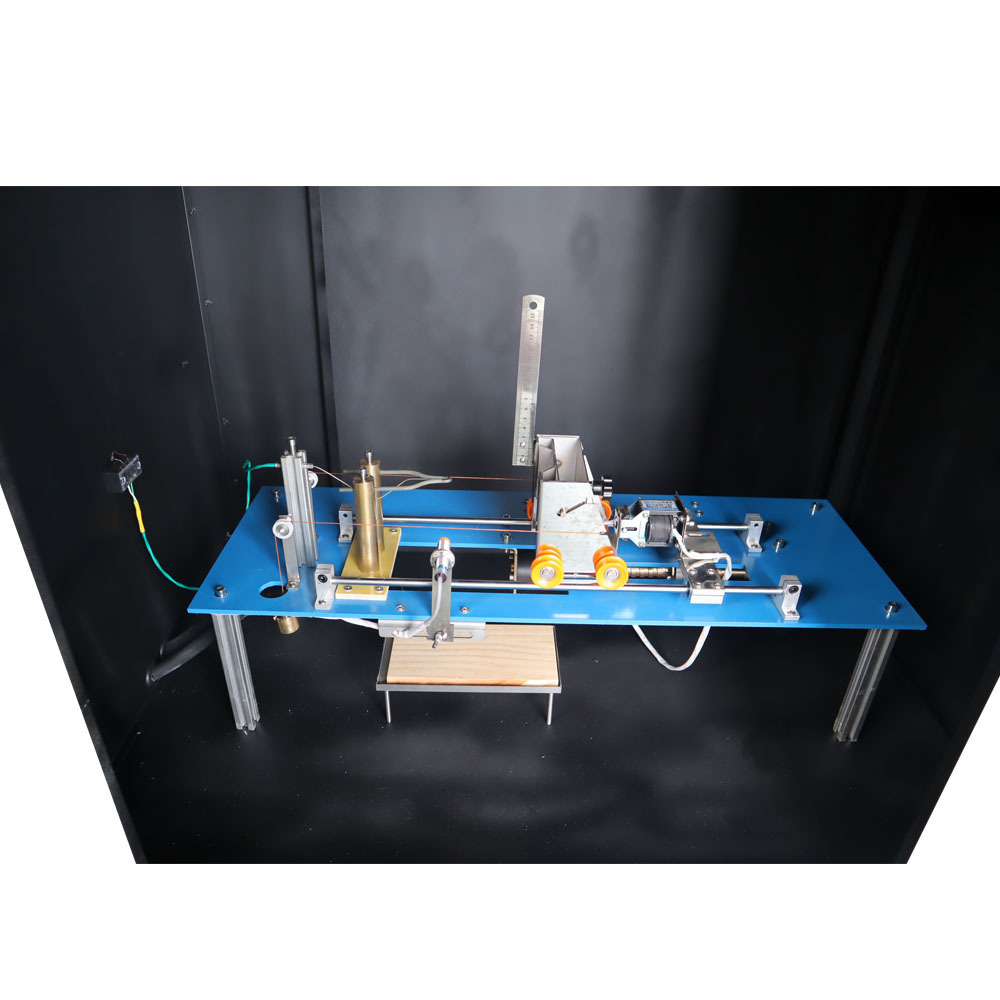

AT802 Glow Wire Tester uses the specified material Ni/Cr(80/120) and shape wire to testing temperature (550℃~960℃) by large current in 1min, use specified pressure (1.0N) vertical iron the specimen 30s. Then observe if the specimen is ignited or burning time to determine the fire risk of electric product, insulation material etc.

Standards:

UL 746A	DIN 695	IEC60695.2~13, 60884-1, 829
GB/T 5169.10~13, 4706.1, 2099.1

Features:

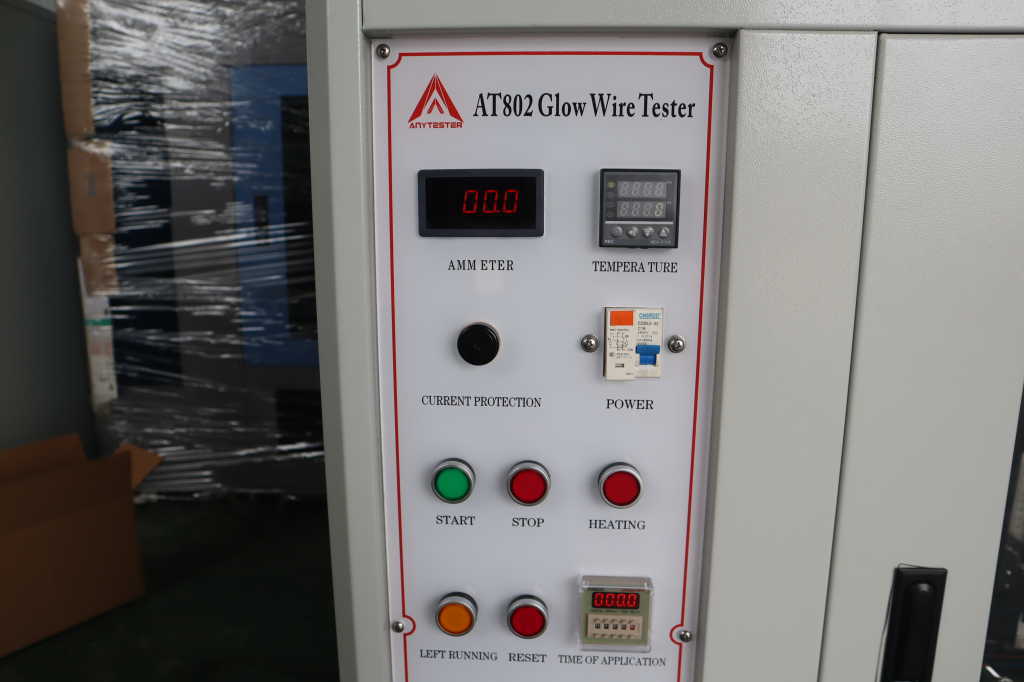

★ Using digital instrument control system, import control components;

★ Fixture made of high quality stainless steel, corrosion-resistant, no rust;

★ One-button time device, to facilitate the use of equipment, simple operation;

★ Advanced temperature control and temperature measurement system, so that the test more accurate, the results more reliable;

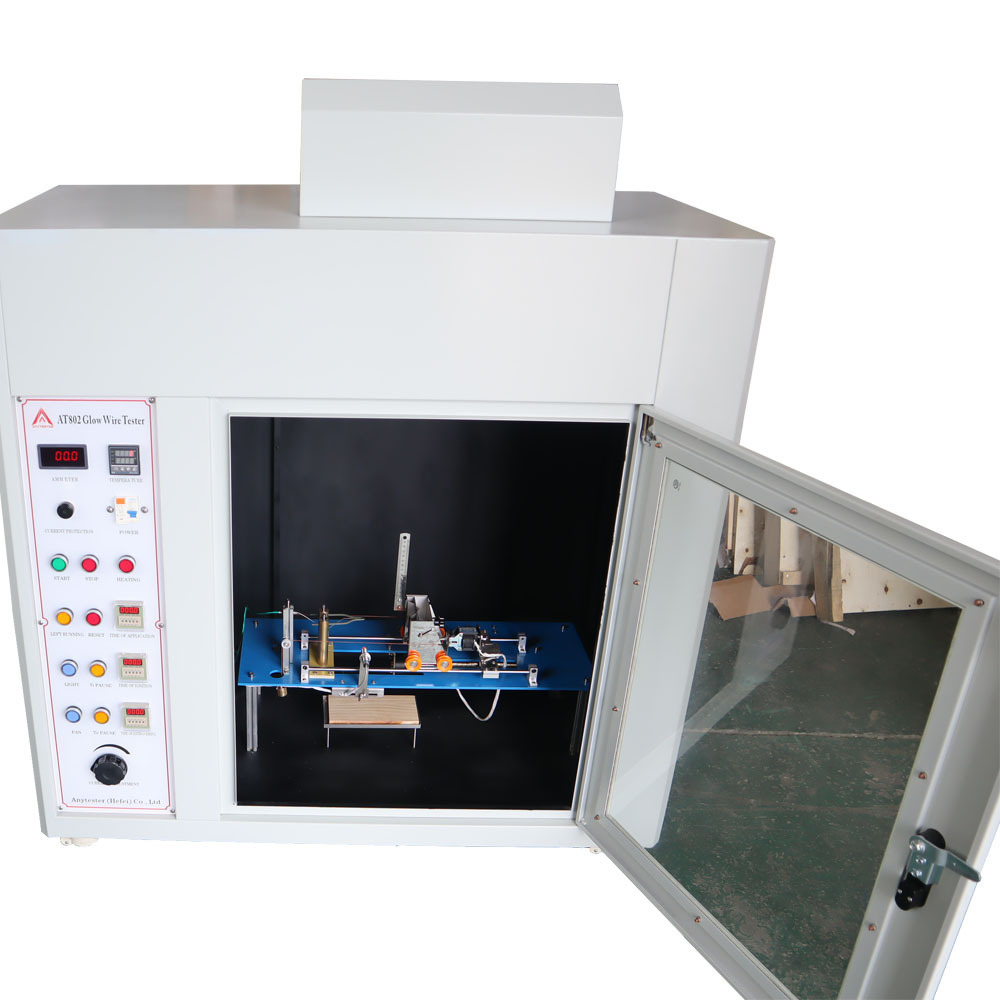

★ Tempered glass observation window, the entire test process can be observed

Technical Specification:

Model	AT802
Glow wire	4mm ± 0.04mm Ni/Cr(80/120)
Glow wire temp.	500 ℃ ～ 1000 ℃
Test pressure	1.0N±0.1N
Max iron depth	7mm ± 0.5mm
Sample moving speed	10mm /s ～ 25mm /s
Test time	1s ～ 999.9s
Test space	0.5m3
Background illumination	≤ 20Lx
Power supply	AC220V, 50Hz

Standard Configuration:

No.	Item	Quantity
1.	Main machine	1set
2.	U-type hot wire head	1set
3.	Thermocouple (0.5mm)	1set
4.	Plate	1pc
5.	Pine board	1pc
6.	Silk paper	5pcs
7.	Silver foil	1pc
8.	Exhaust pipe	1pc
9.	power cable	1pc
10.	Packing list	1pc
11.	Quality certificate	1pc
12.	User manual	1pc

Optional Configuration:

No.	Item
1
