Application:

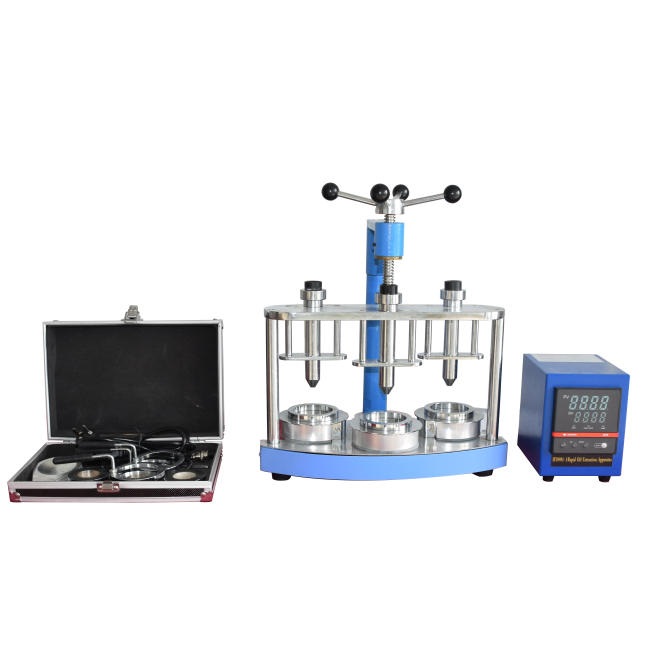

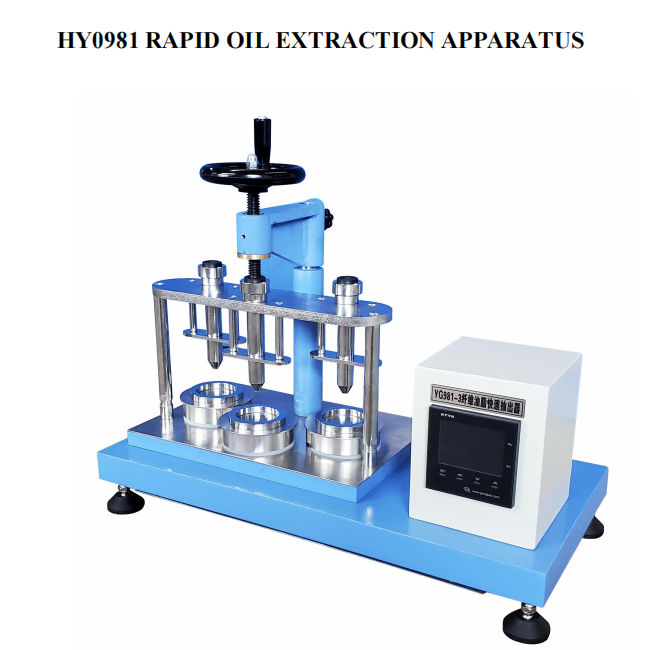

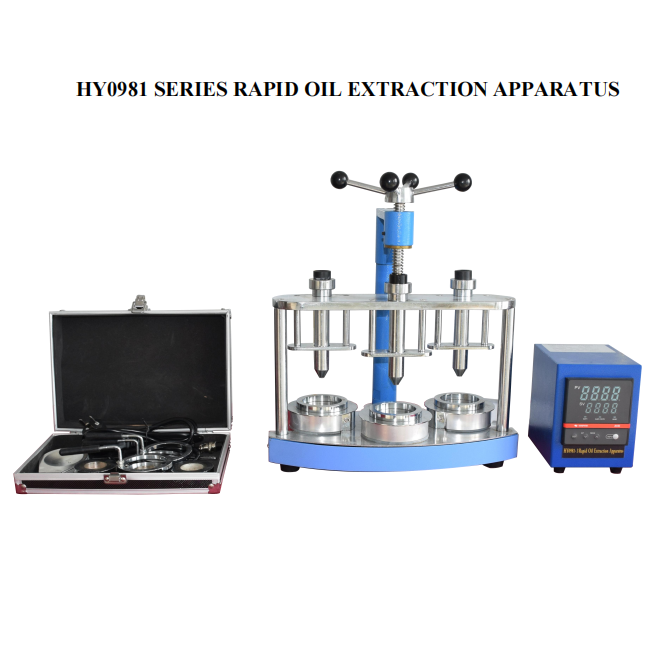

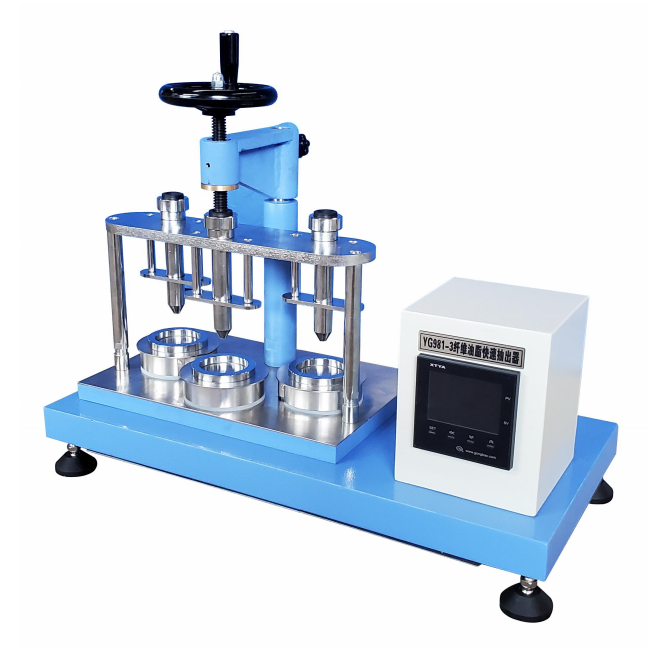

HY0981 Series Rapid Oil Extraction Apparatus is used to determine the oil content of wool or synthetic samples by solvent percolation and evaporation. It is suitable for fiber, yarn or fabric.
Standards:
GB/T 6504, GB/T 6977 | FZ/T 20002 |
Note: For more standards, please contact us.
Features:
★ Available with 1 or 3 working positions;
★ LED display of evaporation temperature;
★ Easy and fast to operate, only 45~60min for each test;
★ Less sample, only 2g for each test and less extraction solvent up to 20ml.
Technical Specification:
Model | HY0981-1 | HY0981-3 |
Temperature range | 60~220℃ | |
Sample quantity | 2g | 2g×3 |
Quantity of extraction solvent | 20ml | 20ml×3 |
Rated power | 300W | |
Suitable extraction solvent | Petroleum ether, diethyl ether, dichloromethane, etc. | |
Power supply | AC220V 50Hz | |
Dimensions | 190*250*505mm | 475*465*505mm |
Weight | 15kg | 30.5kg |
Standard Configuration:
No. | Item | Quantity |
1. | Main machine | 1set |
2. | Tube | 1set |
3. | Weight | 1set |
4. | Tweezers | 1pc |
5. | Dish | 1set |
6. | Packing list | 1pc |
7. | Qualified certificate | 1pc |
8. | User manual | 1 copy |
