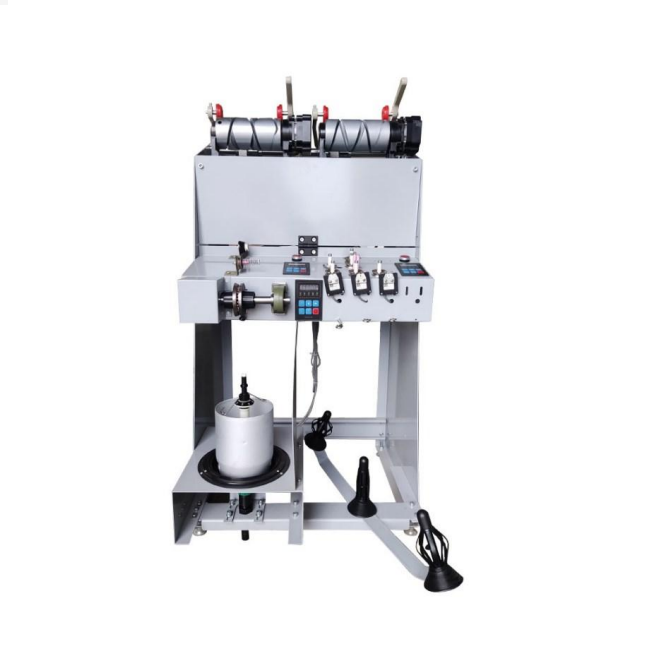

High quality Double and Twisting Machine

3700.0~3800.0 USD

Min. Order: 1 Set/Sets

Trade Term: FOB,CFR,CIF,DAT,FAS,EXW

Payment Terms: Paypal, L/C, D/P, D/A, T/T, WU, Money Gram

Place of Origin: Anhui, China (Mainland)

Means of Transport: Ocean, Air, Land

Production Capacity: 10 sets/month

Packing: Wooden CASE

Delivery Date: 30 days

Number of spindles: 1 for winding/1 for double twisting

Mechanical speed: Up to 1000/min(depending on yarn quality and count)down to 25m/min

Package bobbin: 0° 3°30 4°20 5°57 9°15

Package diameter: Up to 290mm

Package weight: Up to 3kg

Yarns/count: Cotton.flax,wool

Power consumption: Installed power:100W/spindle,Power consumption:65W/spindle

Automatic length fixing: Automatic length fixing, max:999999m

Slow start: For smooth start and vetter winding quality,supporting individual slow start for each spindle

Power supply: 220V 50/60Hz,1 phased

Application:

AT207A Doubling and Twisting Machine is a combination machine of winding ad twisting.

Features:

« Using high quality alloy drums with optimized groove shape, which has the advantages of good anti-overlapping characteristics, light weight, good wear resistance, and static elimination.

« Single winding motor control for each spindle, electronic fixed-length, and single spindle automatic stop while yarn breaking or fully filled.

« High-speed creel with gas spring, which can keep constant winding pressure. This creel is stable and reliable.

« Twist by independent regulation in 10-500 NC twist.

Technical Specification:

Model	AT207A
Number of spindles	1 for winding 1 for double twisting
Mechanical speed	Up to1000m/min (depending on yarn quality and count) Down to 25m/min
Package bobbin	0°, 3°30', 4°20', 5°57', 9°15′
Package diameter	Up toφ 290 mm
Package weight	Up to 3kg
Yarns / count	Cotton. flax, wool,
Power consumption	Installed power:100W/spindle, Power consumption:65W/spindle
Auto stop while yarn break	With electronic yarn sensor, the spindle will stop when yarn break
Automatic length fixing	Automatic length fixing,max:999999m
Slow start	For smooth start and better winding quality,supporting individual slow start for each spindle
Power supply	220V , 50/60HZ, 1 phased
