High quality Fiber fineness analysis system

5900.0~6000.0 USD

Min. Order: 1 Set/Sets

Trade Term: FOB,CFR,CIF,DAT,FAS,DDP,EXW

Payment Terms: L/C, D/P, D/A, T/T, WU

Place of Origin: Anhui, China (Mainland)

Means of Transport: Ocean, Air, Land

Production Capacity: 50 sets/month

Packing: Wooden box

Delivery Date: 2 ~ 4 weeks

Power: Electronic

Usage: Textile Testing Instrument

Brand Name: Anytester

Model: HY0170

Measuring range: 1-2000um

Objective lens: 4x 10x 20x

System magnification: 25x

Sample magnification: 100x 250x 500x

Power supply: AC220V 50Hz

Weight: 25kg

MOQ: 1 set

Package: wooden case

Brand: Anytester

Application:

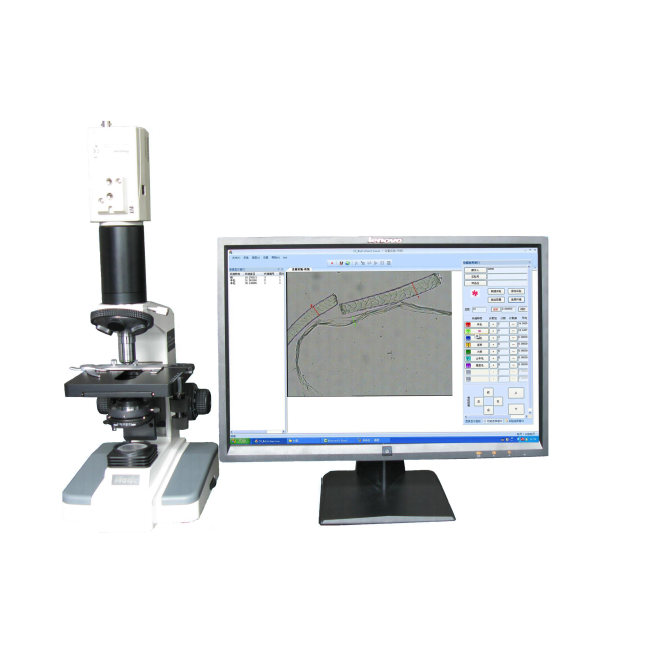

HY0170 Series Fiber Fineness Analysis System consists of optical microscope, high resolution industrial camera and computer, to perform fiber diameter and cross-sectional area tests by using professional software. It also can determine the content of each fiber in the blended fiber. HY0170 series contains several different models since different microscope and different software.

Standards:

AATCC20/A-2011,	ISO137-1975, ISO 17751, ,	IWTO-8-2004, IWTO-47-2009,
TWC-TM24-2009	SN/T 1062, 0756	GB/T 20732-2006, 10685-2007, 16988
FZ/T 01057.3, 30003, 32004, 01101-2008

Note: For more standards, please contact us

Features:

HY0170A Fineness type

★ Qualitative analysis, conforms to AATCC20-2011, FZ/T01057.3

★ Used to determine the fiber diameter of animal fiber, chemical fiber, cotton and flax fiber, etc. Fast to test, easy to operate, with small human error

★ Fiber diameter measurement, conforms to ISO137-1975, IWTO-8-2004, TWC-TM24-2009, GB/T 10685-2007

★ With automatic test function of fiber diameter (optional), conforms to IWTO-47-2009, GB/T 20732-2006

★ Measuring range: 1~2000μm

★ Data and report output in EXCEL format, it also can be customized as customer's requirement

HY0170B Content type

★ Contains all the functions of HY0170A

★ It can determine fiber content of various blended products by analyzing single fiber morphology and measuring diameter

★ It conforms to ISO 17751, SN/T 1062, GB/T 16988, SN/T 0756, FZ/T30003, FZ/T 32004, etc.

★ Adopts professional analysis software, data and report output in EXCEL format

★ Provided with sample gallery of special animal fiber, chemical fiber, cotton and flax fiber, convenient to contrast for operator, improve the ability of identification

HY0170C Integrated type

★ Contains all the functions of HY0170B

★ It can used to observe cross-sectional morphology of chemical fiber, profiled fiber and hollow fiber, and also can determine cross-sectional area

★ It conforms to AATCC 20A-2011, FZ/T 01101-2008

★ It also can determine shape factor and hollow degree, conforms to FZ/T 50002-1991

Technical Specification:

Model	HY0170
Measuring range	1~2000μm
Objective lens	4×, 10×, 20×
System magnification	25×
Sample magnification	100×, 250×, 500×
Power supply	AC220V, 50Hz
Weight	25kg

Standard Configuration:

No.	Item	Quantity
1.	Optical microscope	1set
2.	Camera	1pc
3.	Scale ruler	1pc
4.	Fiber microtome	1pc
5.	Professional software	1pc
6.	Connecting line	1set
7.	Packing list	1pc
8.	Quality certificate	1pc
9.	User manual	1pc

Optional Configuration:

No.	Item
1	Computer
	Scale ruler
2	Fiber microtome
