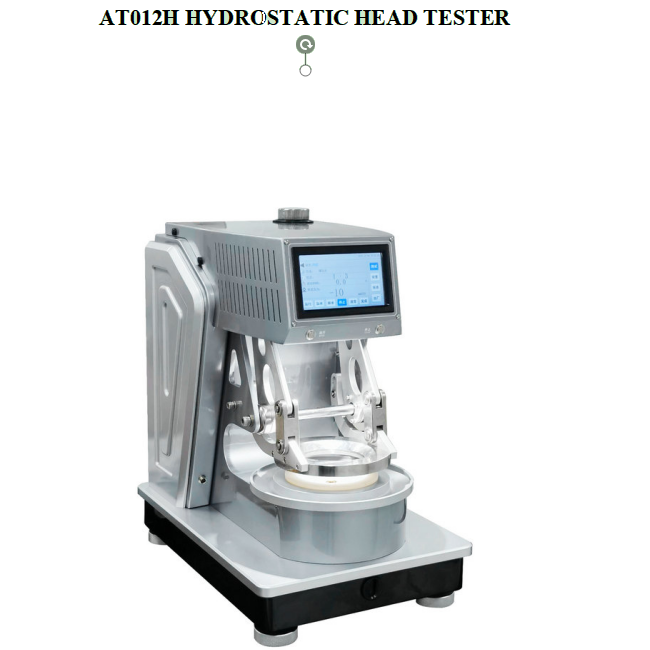

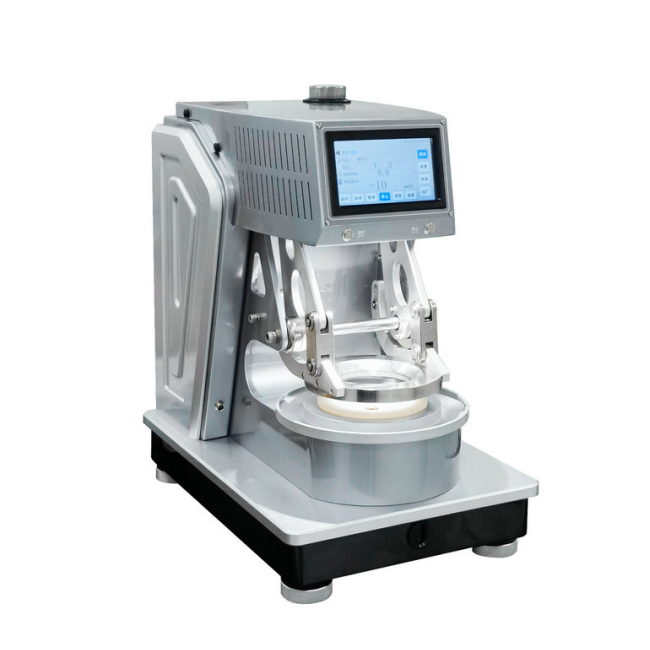

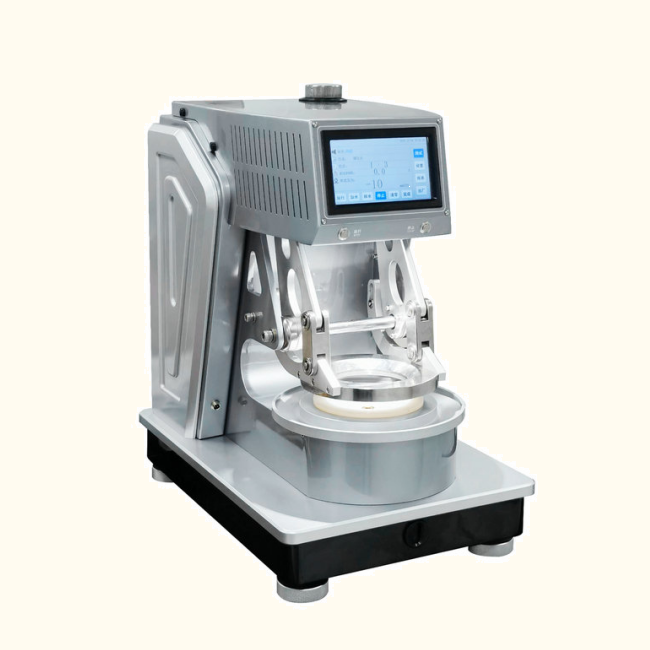

High quality Hydrostatic Head Tester

10800.0~11000.0 USD

Min. Order: 1 Set/Sets

Trade Term: FOB,CFR,CIF,EXW,

Payment Terms: L/C, T/T, WU

Place of Origin: Anhui, China (Mainland)

Means of Transport: Ocean, Air, Land

Production Capacity: 100 sets/month

Packing: Wooden box

Delivery Date: 2 ~ 4 weeks

Power: Electronic

Usage: Others

Brand Name: Anytester

Test ring diameter: 113mm

Test area: 100cm2 or customized

Measuring range: 0 ~ 500kPa, 0.01kPa

Measuring resolution: ≤±0.5% F.S

Water pressure rising rate: 0.5~100kPa/min (50-10000mmH2O/min), digital setting

Test times: ≤20pcs*30 group

Max. Flow rate: ≤200ml/min

Power supply: AC220V±10%, 50Hz,250W

Dimensions: 380*480*460mm

Weight: 125kg

Application:

AT012H Hydrostatic Head Tester is used to measure water penetration resistance of many kinds of fabric which with waterproof treatment, such as canvas, coating cloth, tent cloth, tarpaulin, rainproof clothing fabric and geotextile materials, etc. This machine can perform different test methods including dynamic test method, static test method and program test method.

Standards:

AATCC 127	ASTM F1671	ISO 811, 1420
BS 2823, 3321, 3424-26	JIS L 1092A/B	ERT 120-2-02
GB/T 4744	FZ/T 01004	BS EN 20811

Note: For more standards, please contact us!

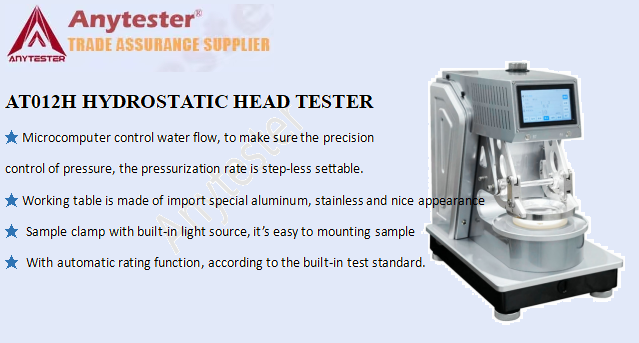

Features:

★ Microcomputer control water flow, to make sure the precision control of pressure, the pressurization rate is step-less settable.

★ Pneumatic clamp, make the loading force evenly to sample, avoid the sample be damaged, easy to mount sample.

★ Working table is made of import special aluminum, stainless and nice appearance

★ Sample clamp with built-in light source, it's easy to mounting sample

★ Large pressure rising rate and stepless setting

★ With automatic rating function, according to the built-in test standard.

★ Five display unit free to change: kPa, mmHg, cmH2O, PSI, Bar

★ Built-in professional LED light, easy to observe drops, and equipped with specialized drops record button, can record lot of pressure results.

Technical Specification:

Model	AT012Q-50
Test ring diameter	113mm
Test area	2500px2 or customized
Measuring range	0 ~ 500kPa, 0.01kPa
Measuring resolution	≤±0.5% F•S
Water pressure rising rate	0.5~100kPa/min (50～10000mmH2O/min), digital setting
Working mode	Pressure increase method, constant pressure method, leakage method, repeated fixed pressure method
Constant pressure hold time	0～99999.9S,±0.1S
Total test time	0～9999999.9S,±0.1S
Test times	≤20pcs*30 group
Max. Flow rate	≤200ml/min
Power supply	AC220V±10%, 50Hz, 250W
Dimensions	380×480×460mm
Weight	125kg

Standard Configuration:

No.	Item	Quantity
1.	Main machine	1 set
2.	Rubber seal ring	1 pc
3.	Funnel	1 pc
4.	Printer connect port	1 pc
5.	Quality certificate	1 pc
6.	User manual	1 pc
7.	Packing list	1 pc

Optional Configuration:

No.	Item
1	Air compressor
2	Printer
