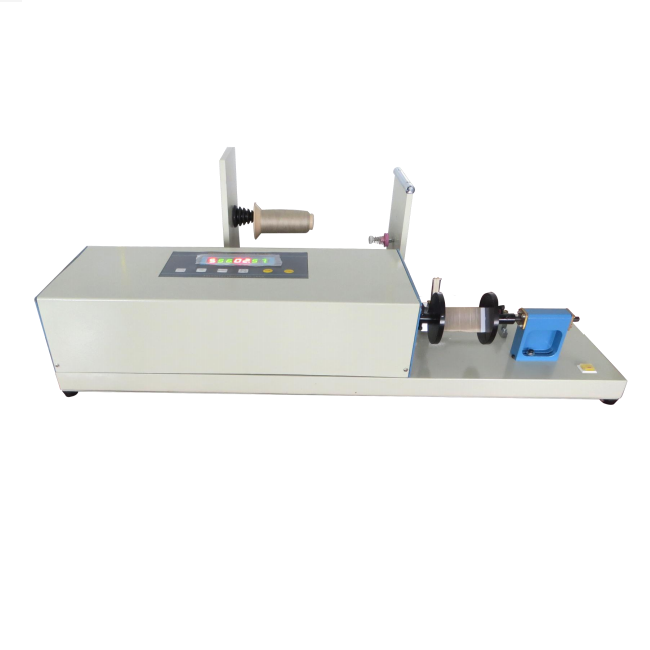

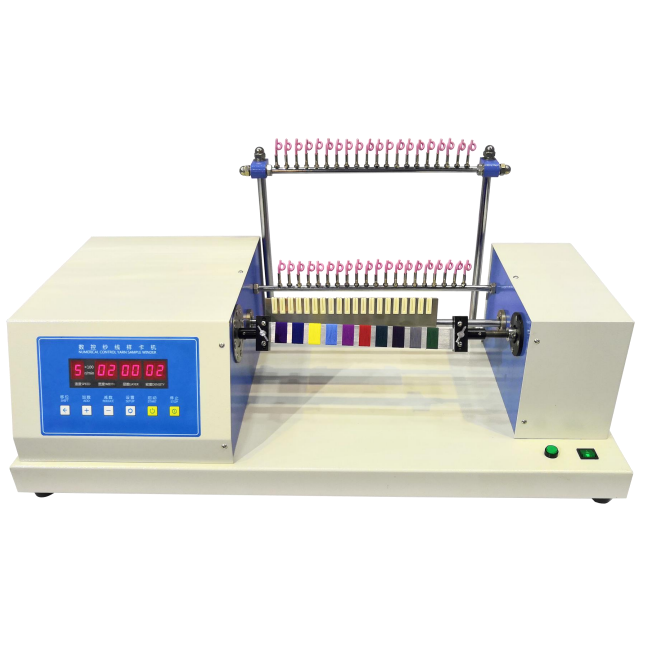

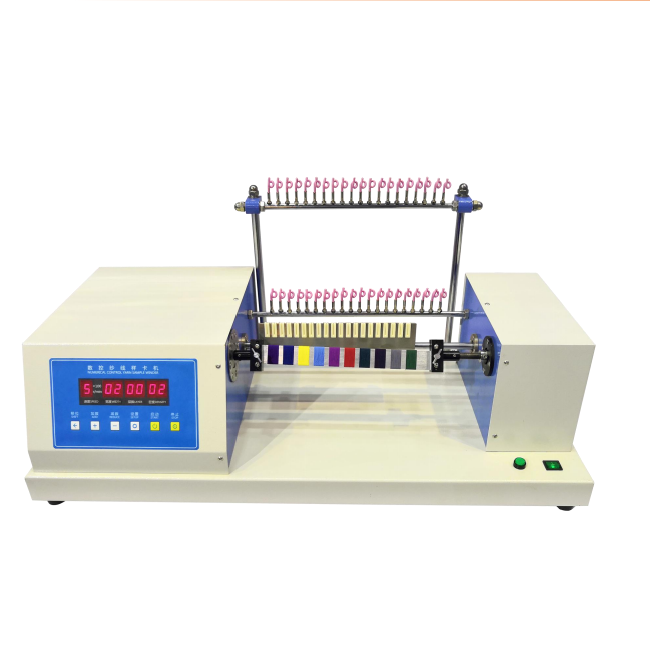

High quality Yarn Sample Winder

1650.0~1800.0 USD

Min. Order: 1 Set/Sets

Trade Term: FOB,CFR,CIF,DAT,EXW

Payment Terms: Paypal, L/C, D/P, D/A, T/T, WU, Money Gram

Place of Origin: Anhui, China (Mainland)

Means of Transport: Ocean, Air, Land

Production Capacity: 50 sets/month

Packing: Wooden box

Delivery Date: 2 weeks

Power: Electronic

Usage: Textile Testing Instrument

Brand Name: Anytester

Model: HY0108

Winding position: 1-20 or customized

Winding width: 0-80mm or customized

Winding length: ≤300mm or customized

Winding speed: 0-1100r/min adjustable

Suitable yarn diameter: 0.03-3.58mm

Winding mode: Can store 6 groups of winding mode

Power supply: AC220V 50Hz

Weight: 38KG

Main machine: 1 set

Application:

HY0108 Yarn Sample Winder is used for production of colored sample cards. It is suitable for winding various yarns, such as woolen yarn, cashmere, decorative thread or other common yarns.

Features:

★It adopts 16 digit SCM control system, LCD displayer with back light, variable-frequency regulating technology to make sample cards more beautiful and regular.

★ It can set and display yarn diameter, winding width, winding speed, etc.

★ 1~30 working position selectable according to customer's different requirement.

★ Equipped with mechanical pretension device, control system and yarn creel.

★ Easy to operate and maintain, more intelligent.

Technical Specification:

Model	HY0108
Winding position	1~20 or customized
Winding width	0~80mm or customized
Winding length	≤300mm or customized
Winding speed	0~1100r/min adjustable
Suitable yarn diameter	0.03~3.58mm
Winding mode	Can store 6 groups of winding mode
Power supply	AC220V, 50Hz
Weight	60kg
