High quality Yarn winding machine

Min. Order: 1 Set/Sets

Trade Term: FOB,CFR,CIF,DAT,DAP,EXW

Payment Terms: L/C, D/P, T/T, WU

Place of Origin: Anhui, China (Mainland)

Means of Transport: Ocean, Air, Land

Production Capacity: 50 sets/month

Packing: Wooden box

Delivery Date: 2 ~ 4 weeks

Power: 220V/380V 50/60Hz

Usage: Textile Testing Instrument

Brand Name: Anytester

Spindle number: 1

Types of winding: Drum Random

Package shape: Cylindrical or conical

Traverse length: 147mm 150mm 152mm 154mm

Package bobbin: 0° 3°30 5°57 9°15

Package diameter: up to 290mm

Package weight: up to 3kg

Dimension: 127*408*1510mm

Weight: 89kg

Application:

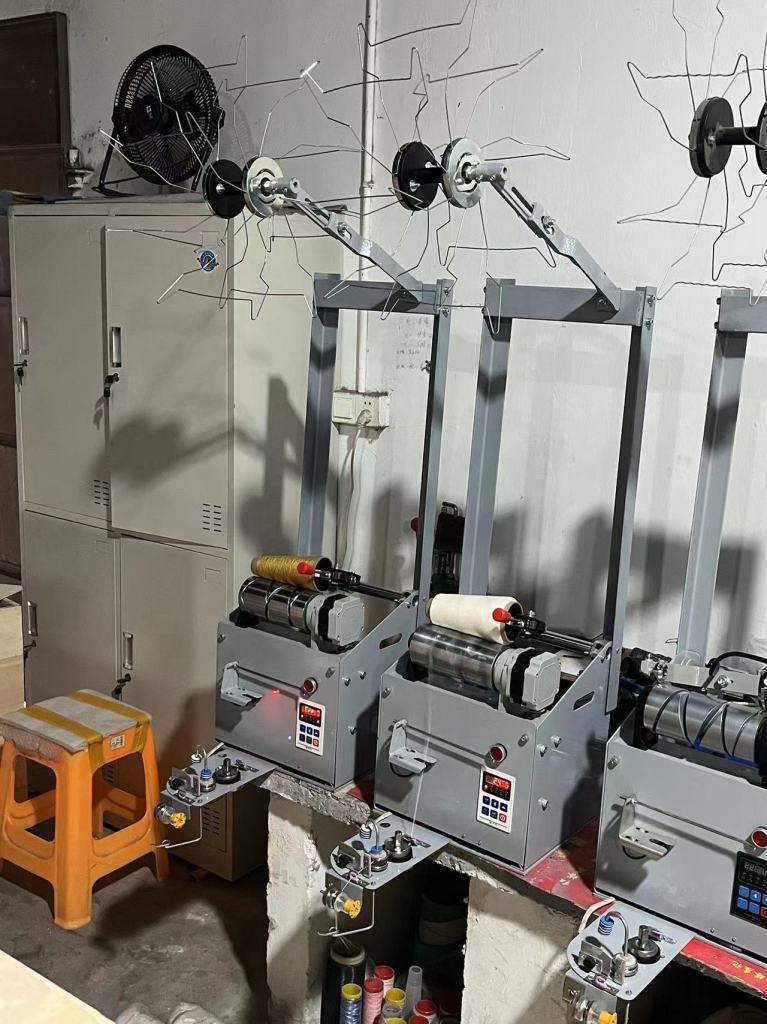

AT209A Yarn Winding Machine is use to winding the hank yarn, roving, or tube yarn be bobbin yarn. It is widely used to wind cotton yarn, chemical fiber, filament, low stretch yarn.

Features:

★ Double points tension control system with micro motors, uniform yarn tension. It is appropriate for high speed waxing winding and easy to operate.

★ This machine can be set the length of winding; When there is broken yarn it will stop automatically; when yarn is fully filled, it will also stop; also, it has the function of slow start.

★ High-speed creel with gas spring, which can keep constant winding pressure. The creel is stable and reliable. And it will make the loose bobbin be suitable.

★ The machine has the device to protect yarn, our adjustable block yarn sheet metal can prevent the yarn be a mass.

★ This machine assemble with XKH grooved drums(0°,3°30',4°20',5°57',9°15'), this kind of Ni-P alloy grooved drum has optimized groove shape which have the advantages of good wear resistance and static elimination.

★ We use brushless DC motor with longer axis, it is convenient to adjust the speed ofsingle spindle

Technical Specification:

Model	AT209A
Spindle number	1
Types of winding	Drum, Random
Mechanical speed	Up to 1200m/min (process speed depending on quality of yarn and feed packages
Package shape	Cylindrical or conical
Traverse length	147mm,150mm,152mm.154mm
Package bobbin	0° 3°30′5°57′9°15′
Package diameter	Up to φ290 mm
Package weight	Up to 3kg
Package density	0.2-0.4g/cm3
Yarns / count	Cotton flax, wool, silk, chemical fiber /Ne 6-180
Groove drum	Φ82*175mm
Power consumption	Installed power:100W/spindle Power consumption:65W/spindle
Auto stop while yarn break	With electronic yarn detector, the spindle will stop when yarn break
Power	220V/380V, 50/60Hz
Dimension	1270mm×408mm×1510mm
Weight	89kg
