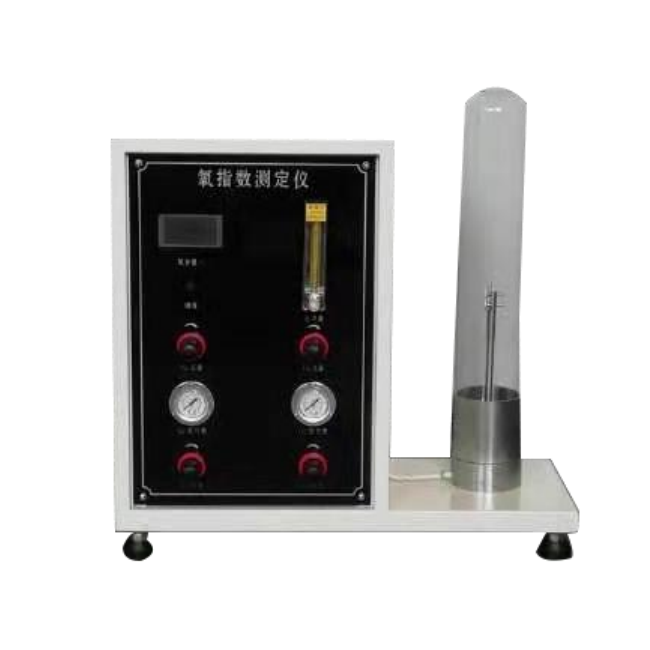

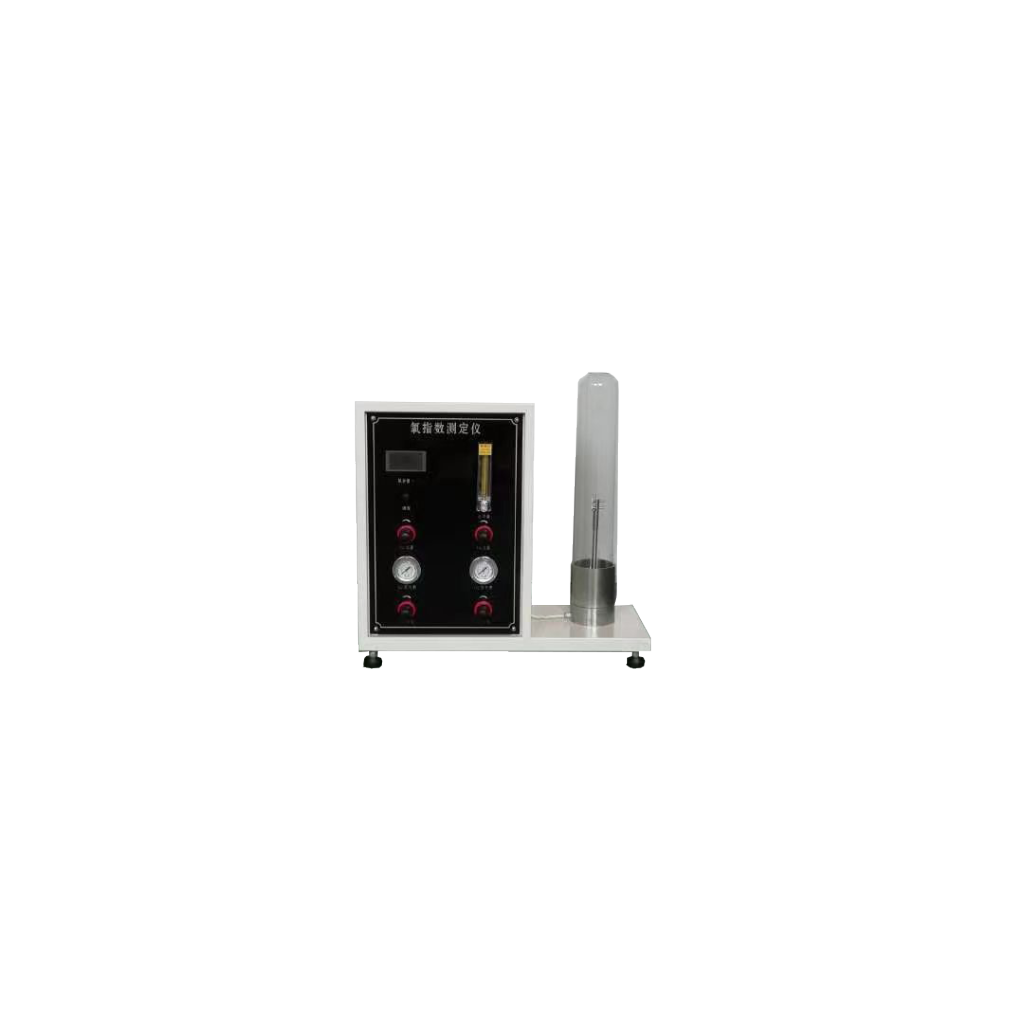

Keyboard type Oxygen Index Tester
  • Keyboard type Oxygen Index Tester
  • Keyboard type Oxygen Index Tester
  • Keyboard type Oxygen Index Tester
  • Keyboard type Oxygen Index Tester
  • Keyboard type Oxygen Index Tester
  • Keyboard type Oxygen Index Tester

Keyboard type Oxygen Index Tester

Min. Order: 1 Set/Sets
Trade Term: FOB,CFR,CIF,DAT,FAS,EXW
Payment Terms: L/C, D/P, T/T, WU
Place of Origin: Anhui, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 100 sets/month
Packing: Wooden box
Delivery Date: 10~20 days
Power: Electronic
Usage: Plastic Testing Machine
Brand Name: Anytester
Control Method: Keyboard
Oxygen concentration range: 0-100%
Accuracy class: 0.4
Air flow range: 0-10L/min(adjustable)
Oxygen concentration accuracy: ±0.1%
Combustion cylinder: Height:400mm Inner diameter:75mm
Input pressure: 0.2-0.4Mpa
Power supply: AC220V 50Hz 1 phase
Dimensions: 660*350*610mm
Package weight: 55kg

Application:

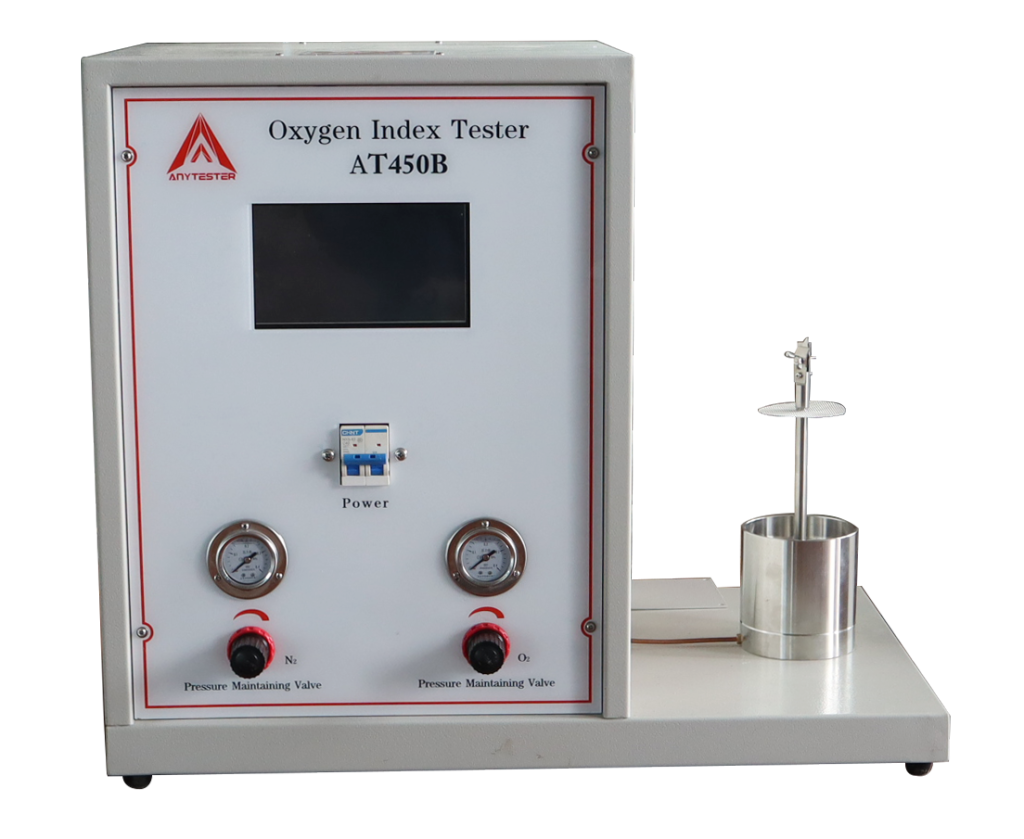

AT450 Oxygen Index tester is used to determine the relative flammability of plastics and other materials by measuring the minimum oxygen concentration that will support combustion. The test specimens are burned in a precisely controlled atmosphere of nitrogen and oxygen. It can be used to determine oxygen index of plastics, rubber, fibers, foam plastics, film and textiles, etc.



Standards:

ISO 4589-2

ASTM D 2863

GB/T5454

GB/T2406.2

GB/T 10707

GB/T 8924-2005



Features:

★ High Precision Imported Special oxygen sensor provides oxygen concentration

★ The oxygen concentration is directly displayed by the digital display meter , and touch screen controlling type is optional

★ Special manual igniter is safe and reliable.

★ Standard air is used to automatically calibrate oxygen concentration.



Technical Specification:

Model

AT450A

AT450B

Control Method

Keyboard

Touch Screen

Oxygen concentration range

0~100%

Accuracy Class

0.4

0.2

Air flow range

0~10L/min(adjustable)

0~20L/min(adjustable)

Oxygen concentration accuracy

±0.1%

Combustion cylinder

Height: 400mm

Inner diameter: 75mm

Height: 500mm

Inner diameter: 75mm

Flow Velocity in Combustion Cylinder

40mm±2mm/s

Response time

<5s

Input pressure

0.2~0.4Mpa

0.2~0.3Mpa

Gas of Ignition system

Propane or Butane

Flame Height

5~60mm adjustable

Flowmeter range

1-15L/min adjustable

1-20L/min adjustable

Working pressure of N2 and O2

0.1~0.15Mpa

Power supply

AC220V 50Hz 1Phase

Dimensions

660mm×350mm×610mm

Package Weight

55kg

Standard Configuration:

No.

Item

Quantity

1.

Main machine

1set

2.

Self-supporting sample holder

1set

3.

Non-self-proclaimed sample holder

1set

4.

Heat-resistant quartz glass

1set

5.

Packing list

1pc

6.

Quality certificate

1pc

7.

User manual

1pc



Optional Configuration:

No.

Item

1
