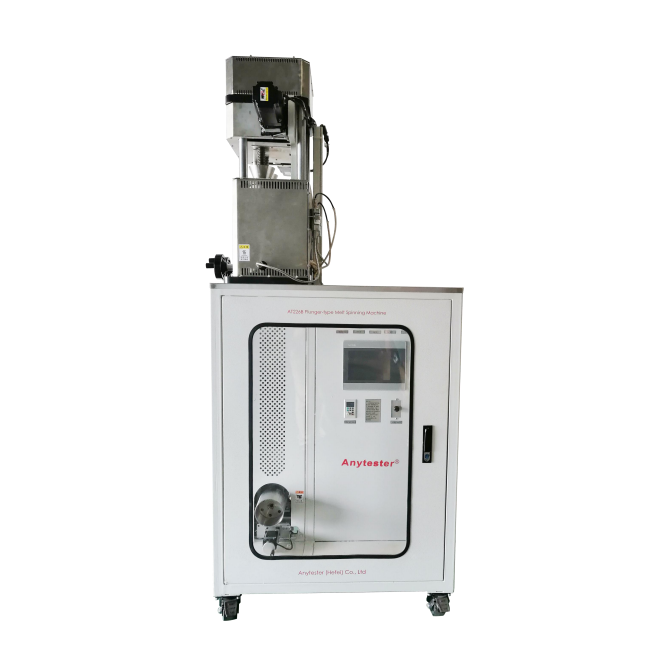

Plunger-type melt spinning machine

Min. Order: 1 Set/Sets

Payment Terms: L/C, T/T, WU

Place of Origin: Anhui, China (Mainland)

Means of Transport: Ocean, Land

Production Capacity: 10 sets/month

Packing: Wooden box

Delivery Date: 4 ~ 6 weeks

Servo miotor: Rated power:200w Reduction gear ratio:1:20

Heating power: 2000w

Temperature controlling range: RT+10~450℃

Controlling accuracy: ±0.5℃

Heat mode: Heat loop of cast copper

Material of spinneret plate: SUS630

Number of spinneret orofice: 3

Diameter of spinneret orifice: 0.3mm

Size of winding roll: 80*120mm

Power supply: AC220V 50Hz,single-phase

Application:

AT226 Series Plunger-type Melt Spinning Machine is used to carry out the melt spinning of polypropylene, polyester, polyamide and other special materials with plunger piston extrusion system. The raw material melts in the heating cylinder. The plunger piston driven by the servo motor can control the flow of melt liquid. The melt liquid is extruded through the spinneret plate to spin. The spun fiber can be direct wound onto the winding roll.

Feature:

« Touch screen control and display relative parameters

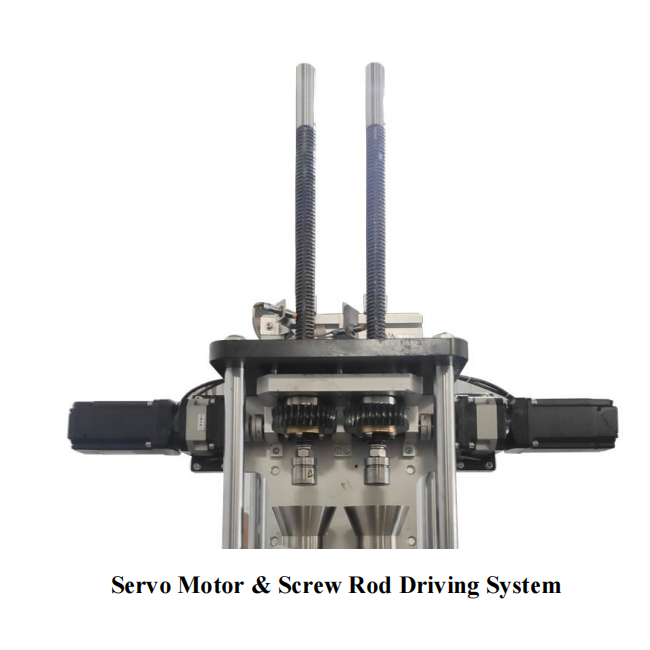

« Servo motor and screw rod to drive plunger piston to extrude melt material;

« Change moving speed of plunger piston to adjust the spinning speed;

« Electric heating with copper heater to melt material in material cylinder;

« Mechanical expansion winding roll;

« Applicable to spin filament of single material or two material.

Technical Specification:

Model	AT226A	AT226B
Number of plunger piston and material cylinder	1	2
Driving method	Servo motor and screw rod drive Adjust plunger piston speed to control feeding amount
Material cylinder	316L stainless steel Inner diameter: 40mm Lenght: 300mm Designed pressure up to 5Mpa
Servo motor	Rated power: 200W Reduction gear ratio: 1:20
Heating power	2000W
Temperature controlling range	RT+10~450℃
Controlling accuracy	±0.5℃
Heat mode	Heat loop of cast copper
Material of spinneret plate	SUS630
Number of spinneret orifice	3
Diameter of spinneret orifice	0.3mm
Rated power of winding motor	400W
Max. rotation speed of winding motor	2800r/min
Size of winding roll	¢80×120mm
Power supply	AC220V 50Hz, single-phase
