Introduction:

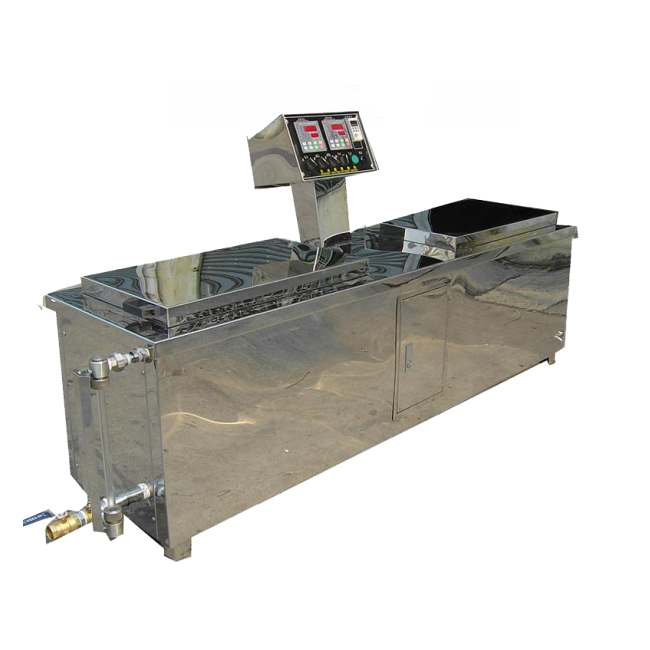

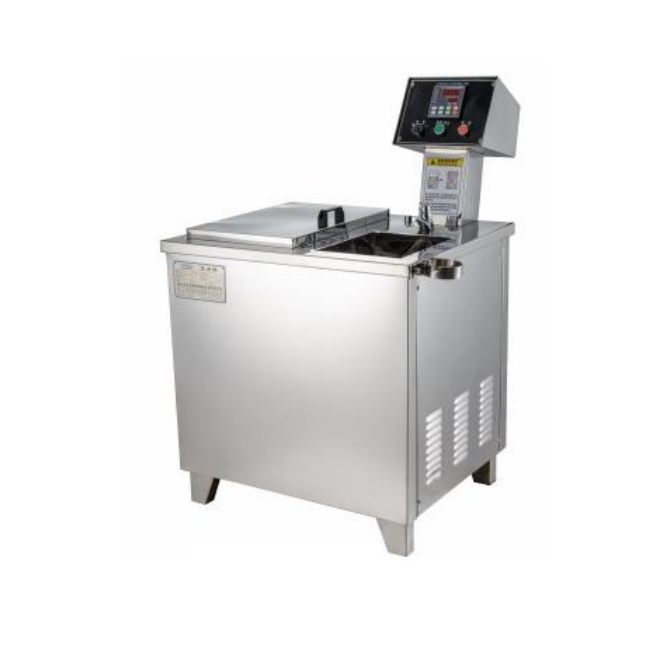

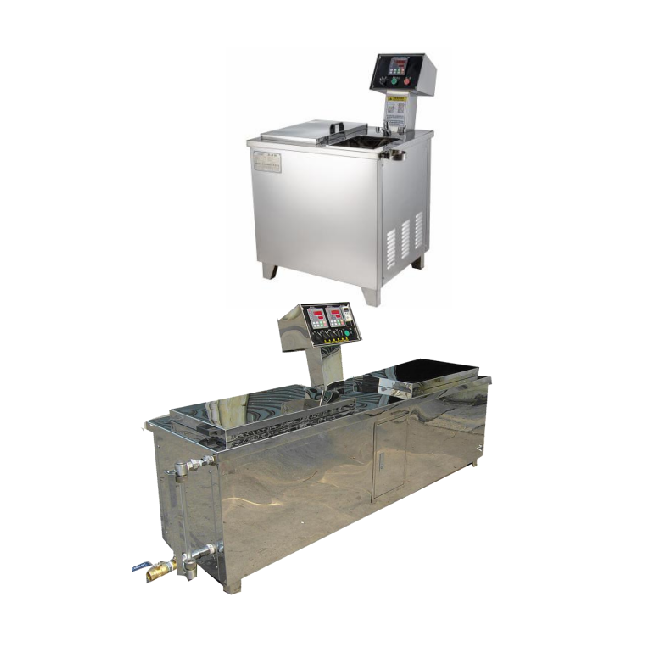

AT277 Sample Size Garment & Ribbon Dyeing Machine is suitable for dyeing, finishing and washing of knitted products such as woolen sweater, nylon, acrylic, cotton and rayon.
Application:
Features:
★ Microcomputer control heating temperature
★ Stainless steel exterior design, nice appearance
★ The inversion controller is used to automatically control the operation of positive and negative, so that the cylinder fabric can be uniformly turned to ensure uniform dyeing of the fabric.
★ The bottom of the cylinder is equipped with electric heating pipe, which is convenient and safe to operate.
★ The rotational speed is adjustable from 0-40 RPM.
★ Automatic control of the positive and negative turn.

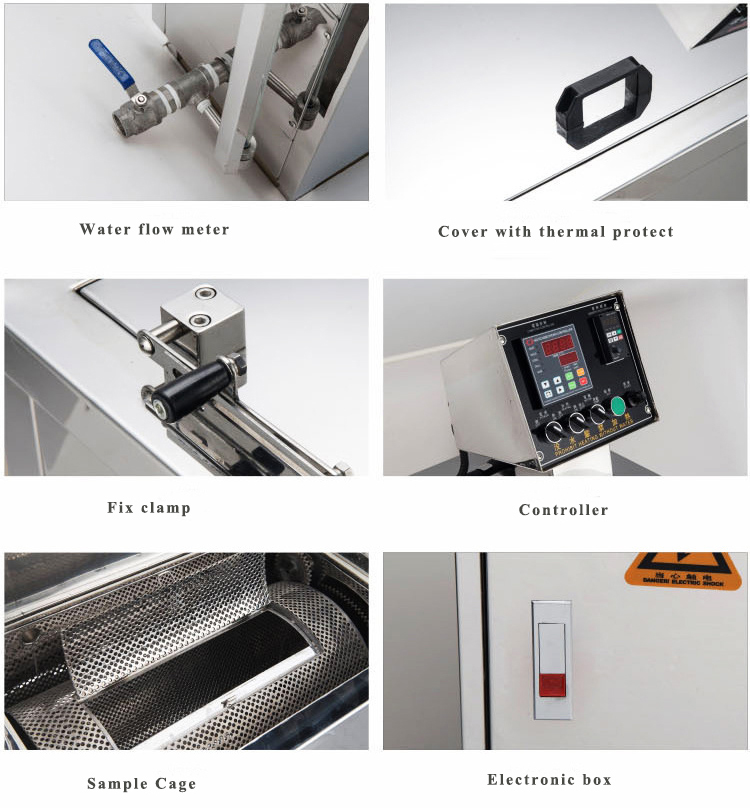

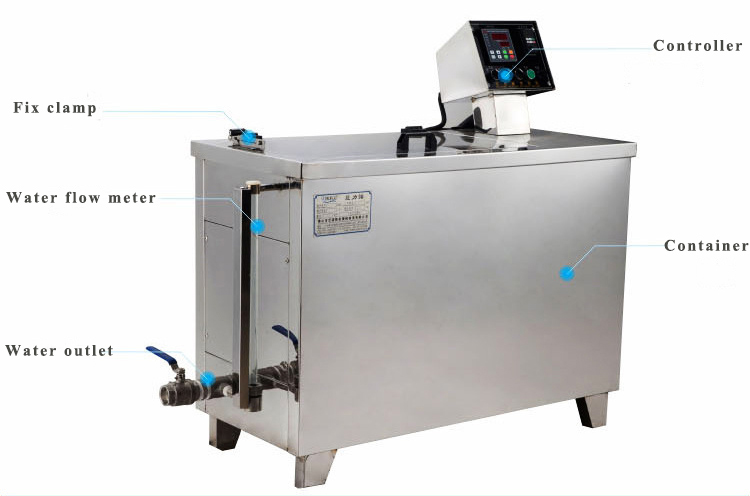

Product Structure:
Equipped with new dyeing machine dedicated computer, precision of the heating system, accurate temperature control and time control, help to improve the working efficiency.
Technical Specification:
Model | AT277 Series |
Temperature control range | RT~99℃ |
Cages size | φ350*300 orφ350*600 |
Capacity | 2kg/4kg |
Bath ratio | 1:10-1:20 |
Heating mode | Electric heating |
Heated medium | Water (recommended use of distilled water) |
Heating power | 3.25KW/10.75KW |
Speed | 0-40rpm/min |
Dimensions | 850*500*1060mm or 1200*680*1100mm |
Power | 380V, 50Hz |
Standard Configuration:
No. | Item | Quantity |
1. | Main machine | 1set |
2. | Quality certificate | 1pc |
3. | User manual | 1pc |
4. | Packing list | 1pc |
Optional Configuration:
No. | Item |
1 |
