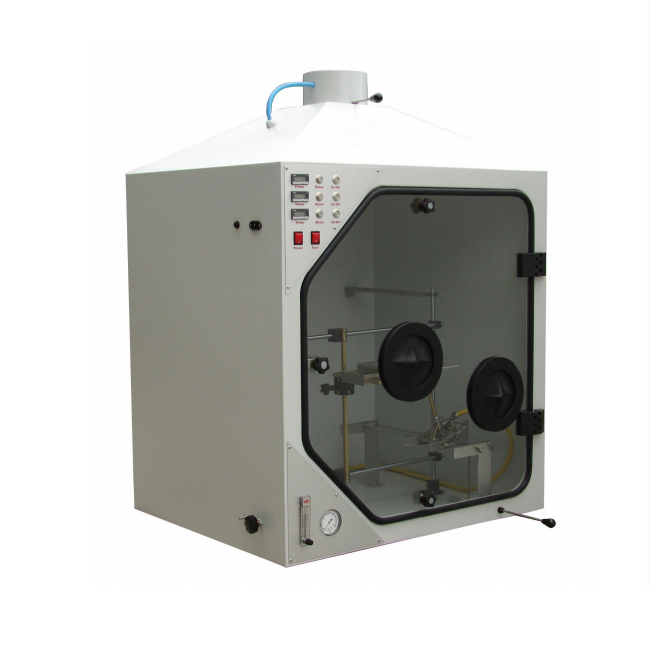

UL94 Horizontal and vertical flammability tester

Min. Order: 1 Set/Sets

Trade Term: FOB,CFR,CIF,DAT,FAS,EXW,

Payment Terms: L/C, D/P, D/A, T/T, WU

Place of Origin: Anhui, China (Mainland)

Means of Transport: Ocean, Air, Land

Production Capacity: 50 sets/month

Packing: Wooden box

Delivery Date: 2 ~ 4 weeks

Power: Electronic

Usage: Textile Testing Instrument

Brand Name: Anytester

Model: AT840

Burner brand: Humboldt USA

Burner diameter: 0.9±0.03mm

Burner angle: 0°,20°,45° adjustable

Flame height: 20-200mm

Perssure reducer brand: MARSH BELLOFRAM,USA

Chamber volume: 0.75m³

Instrument dimensions: 800*920*1270mm

Power supply: 220V 50Hz

Weight: 100kg

Application:

AT840 UL94 Horizontal and Vertical Flammability Tester is used to evaluate compliance the ignition resistance properties of component parts and materials of apparatus and instruments, and suitable for determining the flammability properties such as flammable properties, burning rate, flame spread speed, burning intensity and flammability resistance of products.

Standards:

Horizontal flammability test	UL HB, IEC 60695-11-10, IEC60707, ISO 1210, GB/T 2408
50W vertical flammability test	UL94 V0, V1, V2, IEC60695-11-10, ISO 1210, GB/T 2408
500W vertical flammability test	5VA, 5VB, IEC 60695-11-20, ISO 9770, GB/T 5169.17
Thin flexible material vertical flammability test	VTM-0, VTM-1, VTM-2, ISO 9773
Cellular plastic material horizontal flammability test	HF-1, HF-2, HBF, ISO 9772, GB/T 8332

Features:

★ Volume of test chamber larger than 0.75m3;

★ Large observation window, easy to observe burning state;

★ Humanization design, easy to adjust specimen and burner;

★ 0°, 20°, 45°angle of burner is adjustable;

★ Bunsen burner igniting source, as per ASTM D5025;

★ Record test time by timer on control panel;

★ Adjust burning gas flow by rotor flow meter;

★ High accuracy pressure regulating valve to provide needed gas pressure;

★ Wingtip burner, as per ASTM D4986;

★ Equipped with gas suction device to remove waste gas;

★ Burner calibration system, as per ASTM D5207

Technical Specification:

Model	AT840
Burner brand	Humboldt, USA
Burner diameter	Φ0.9±0.03mm
Burner angle	0°, 20°, 45° adjustable
Flame height	20~200mm
Pressure reducer brand	MARSH BELLOFRAM, USA
Chamber volume	0.75m3
Instrument dimensions	800mm×920mm×1270mm
Power supply	220V, 50Hz
Weight	100Kg

Standard Configuration:

No.	Item	Quantity
1.	Main machine	1 set
2.	UL94 HB sample holder with support	1 pcs
3.	UL94 HB sample holder without support	1 pcs
4.	UL94 V vertical sample holder	1 pcs
5.	UL94 5V plate vertical sample holder	1 pcs
6.	Pack list	1 pcs
7.	Quality certificate	1 pcs
8.	User manual	1 pcs

Optional Configuration:

No.	Item	Quantity
1
2

Note:Customer should equip a bottle of methane gas, back fire valve and reducer valve is necessary, output pressure can be adjusted lower than 200psi, diameter of smoke vent is 230mm.
