Universal testing machien used for quality control and production testing

Introduction:

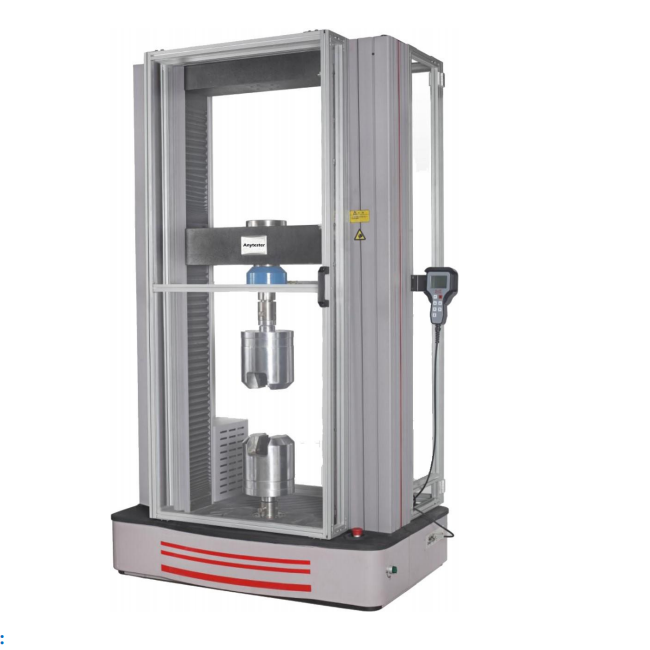

AT104-50 Universal Testing Machine addresses the needs of standardized and routine testing, providing the user high quality at the most affordable price. The double column testing systems are suited for stretching, compression, bending, shearing, peeling, and tearing applications that max load less than 50 KN. They are typically used for quality control and production testing.

Applicatin:

AT104-50 Universal Testing Machine is suitable for tensile, compression, bending, shearing, peeling, tearing and other mechanics performance tests of metals, building components, geosynthetics, large fasteners, composites, wood products, plastics, rubber, textile, non-metallic and composite materials. It completely conforms to GB, ISO, ASTM, JIS, DIN and other test standards.

Features:

Frame:

1. Robust guidance columns with self-lubrication increase lateral stiffness and ensure linear crosshead travel. This results in accurate crosshead alignment thus reducing variability in measurement data and producing better overall accuracy

2. Pre-loaded ball screws and heavy-duty bearings assure long life with zero backlash as well as linear low force and through zero performance. The result is accurate and repeatable measurements that truly represent the specimen characteristics rather than load frame deficiencies

3. Fully-protected lead screw covers provide longer life and greater operator protection

4. Easy-to-clean aluminum column covers with chamfered corners to facilitate access to the test area. T-slots are built in for simple, convenient attachment and positioning of testing accessories

Driving system

1. Japanese YASAKAWA AC servo motor and arc-shape silent synchronous belt features high-speed, low vibration, world-class, and maintenance-free

2. Germany NORD gear reducer offers low noise, low heating, and high efficiency

3. Photoelectrical encoder built in servo motor system is for position measurement of crosshead

Load cell

1. High- precision USA-made Interface load cell offers high stiffness, high stability, and high linearity

2. Safety load is 150% of rated load, don't need worry about overload

3. Over-load protection, lateral loading protection

4. Bi-direction allows tension and compression test

5. Self-recognition (TEDS) function

6. Regular self-calibration

7. Working temperature: -55℃~90℃

Controller

★ Anytester DTC-500 digital controller offers high speed and closed loop control of load, displacement and extension.

★ Imported IC, more reliable

★ Up to 1200Hz sampling frequency

★ Up to 1200Hz closed loop control frequency

★ 20bit resolution

★ 16 digital input/output port

★ Built-in port for PC communication

★ Expandable ports

★ Load protection, over-current protection, over-voltage protection, over-speed protects, and over-travel protection.

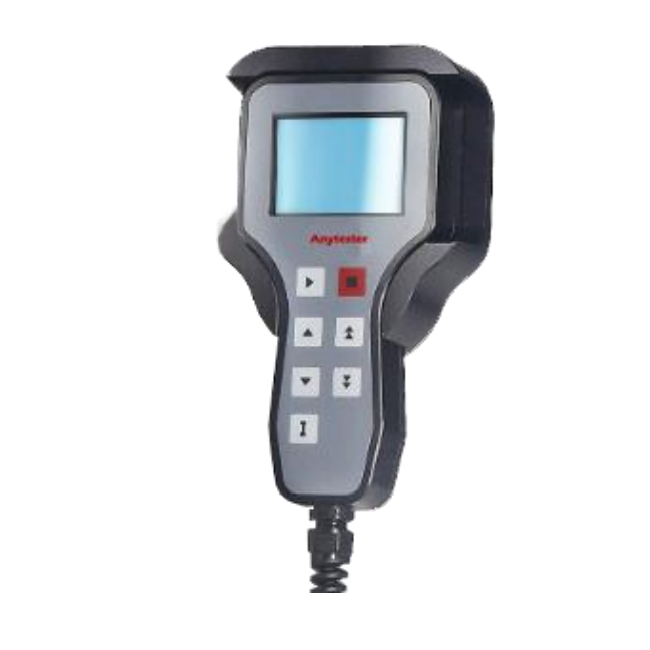

Remote control with display

★ Ergonomically-designed and easy to operate

★ Test star and stop operation

★ Crosshead moving up, down, jog up, jog down

★ Display of measurement channel: force, displacement, extension and etc.

★ Test status display

★ Specimen protection function

Software

★ Multi-language software with built-in English, Chinese and Russian, and user can customize their own translation freely

★ Pre-packaged test methods to help you quickly and efficiently meet the requirements of global test standards such as ASTM, ISO, DIN, EN, BS, and more

★ Intuitive expression for easy programming of testing standards and testing process

★ Testing report can be customized according to the requirement

★ User authorization: The administrator can assign different functions for different level users

★ Analysis can give typical test results like Young's modulus, Proof stress, Yield stress, stress, strain, Tensile strength, Elongation at break, compressive strength, bending strength, etc….

Laser extensometer

★ Optional equipped with imported (from USA) LE-05 laser extensometer, non-contacting optical design requires only reflective tape marks on the specimen, or clip-on reflectors

★ Ideal for use in chambers-calibration not affected by aiming through viewing windows

★ High resolution of 1 micron

★ Full 127 mm (5 inch) measuring range allows high elongation measurements (e.g. 200% on a 25 mm gauge length)

Full complement of test accessories

Extensive range of accessories to meet test requirements in almost any application or industry: plastics, metals, geosynthetics, biomedical, composites, elastomers, components, automotive, aerospace, textiles, and more.

1) Tensile grip

2) Peel/tear fixture

3) Compression fixture

4) Flexure fixture

5) Film COF test fixture

6) Exchangeable load cells: 500N~50kN

7) Laser extensometer

8) Clip-on extensometer

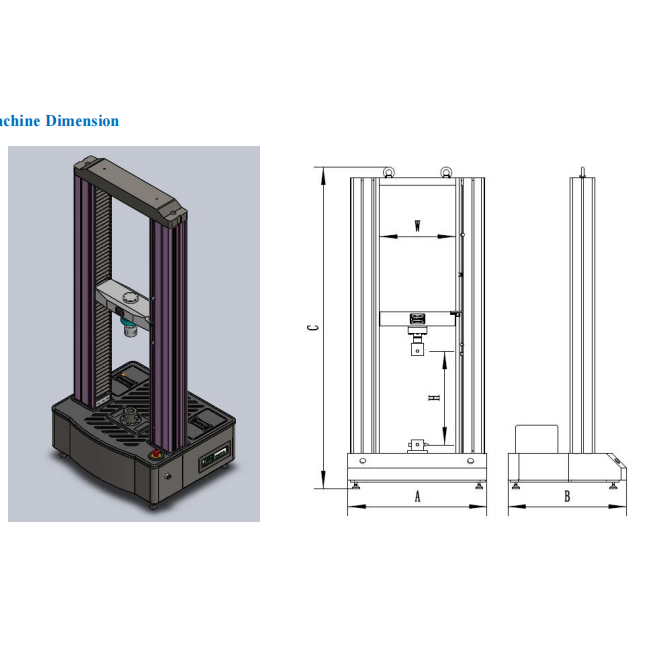

Machine Dimension

Specifications:

Standard configuration:

Optional accessories
