Application:
HY0381 Series Yarn Examine Machine is used to assess the evenness, hairiness, neps and other imperfections in a representative sample of various yarn wound at a pre-determined yarn density onto a quadrate/tapered black or white board.
Standards:
ASTM D2255 | GB/T 398, 5324, 9996 | FZ/T 32004, 32005 |
Note: For more standards, please contact us
Features:
★ Driven by synchronous motor, and digital controlling circuit, ensure uniform pitch during a test
★ Various pitches to satisfy comprehensive requirements of different yarn linear density;

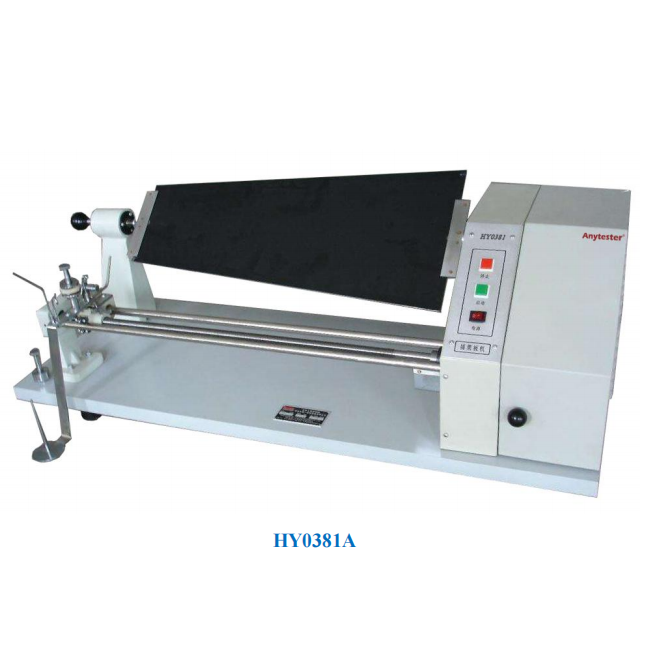

★ Two type board for selection, white board for black yarn (HY381A)
★ Equipped with alternative pre-tension device
★ Auto-stop function
★ Adjustable winding speed
★ The material of board is aluminum, it's more durable.
★ Perfect winding appearance
Technical Specification:
Model | HY0381 | HY0381A | HY0381M |
Board size | 220×250mm (L×W) | 575mm×250mm×160mm (L×W1×W2) | 300×225mm (L×W) |
Board shape | quadrate | tapered | quadrate |
Yarn winding density | 7, 9, 11, 13, 15, 19wraps/cm | 35, 40, 45, 50wraps/10cm | |
Rotational speed | 10~400RPM (adjustable) | ||
Power supply | AC220V 50Hz, 55W | ||
Dimensions (L×W×H) | 620×370×340mm | 1000×370×300mm | 620×370×340mm |
Weight | 30Kg | 35Kg | 30Kg |
Standard Configuration:
No. | Item | Quantity |
1. | Main machine | 1set |
2. | Black board | 1 pcs |
3. | Pretension weights | 1set |
4. | Packing list | 1 pcs |
5. | Quality certificate | 1 pcs |
6. | User manual | 1 pcs |
Optional Configuration:
No. | Item |
1 | ASTM Assessment photo scale |
