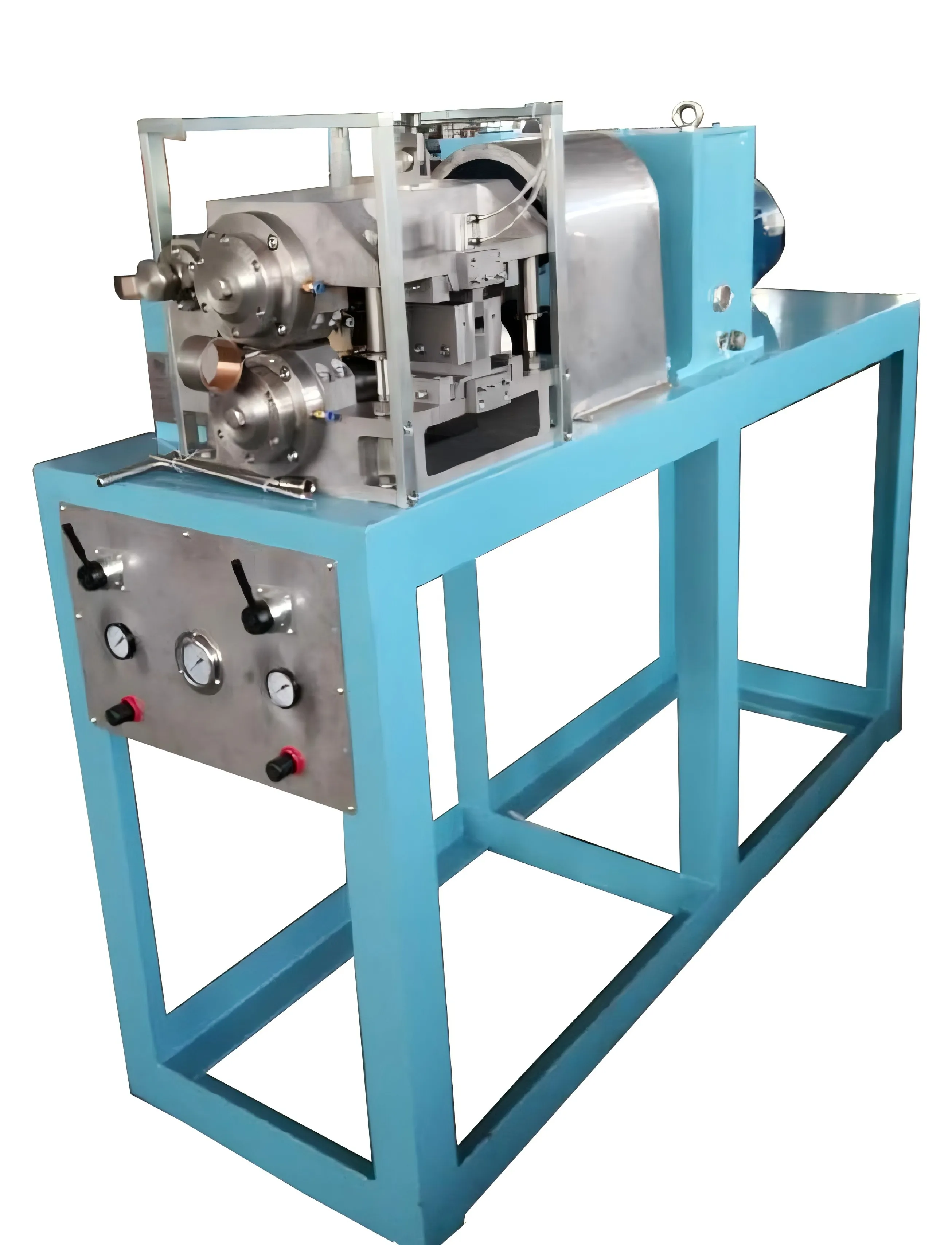

AT229 Rocker Crimper
Product Information
Brand:
Anytester
Model number:
AT229
Minimum Order Quantity:
1
Packing Instructions:
Export Wooden Package
Features:
« Crimping subassembly consists of crimping box, rocker driven device, crimping base, rotary connector, pressure-applying device, gas pressure controlling system, driving box and motor;
« Single gas cylinder and rocker upward-pressing method;
« Supporting bearing adopts dual column cylindrical roll bearing with oil hole and oil groove, radial internal clearance between 50~60um;
« Axial force-resistant bearing adopts back-to-back angle contact ball bearing;
« Stainless steel crimping base and rocker;
« Crimping roll and upper/lower crimping blade made of 4Cr13;
« Whole machine with paint for corrosion-resistance
Technical Specification:
|
AT229 |
|
|
Type |
Stuffer-box, squeezing-type |
|
Operating type |
Right-hand When operator faces the fiber tows, fiber tows moves from left to right. |
|
Fineness of fiber tow |
5~10×104dtex |
|
Max. machine speed |
200m/min (process speed 150m/min) |
|
Crimping roll size |
¢150×30mm |
|
Material of crimping roll and blade |
4Cr13 |
|
Hardness of crimping roll and blade |
≥HRC48~55 |
|
Surface coarseness of crimping roll and blade |
≤0.8 |
|
Side coarseness of crimping roll and blade |
≤0.8 |
|
Surface temperature of crimping wheel |
≤100℃ |
|
Main pressing pressure |
0~0.6Mpa |
|
Back pressing pressure |
0~0.6Mpa |
|
Motor power |
11KW |
|
Reducer speed ratio |
1:4 |
|
Steam pressure |
0.3Mpa |
|
Net weight |
600kg |
Standard Configurations:
|
No. |
Item |
Quantity |
|
1. |
Stainless steel crimping base |
1pcs |
|
2. |
Rocker |
1pcs |
|
3. |
Upper/lower crimping rolls |
1pair |
|
4. |
Crimping blade |
1pair |
|
5. |
Side plate |
4pcs |
|
6. |
Copper belt |
2pcs |
|
7. |
Feeding frame |
1pcs |
|
8. |
Fiber tow tray plate |
1 pcs |
|
9. |
Upper hood |
1 pcs |
|
10. |
Fiber output funnel |
1 pc |
|
11. |
Side spray nozzle for crimping roll |
4pcs |
|
12. |
Main pressure cylinder |
1pcs |
|
13. |
Back pressure cylinder |
1pcs |
|
14. |
Machine frame |
1pc |
|
15. |
Stainless steel hot water circulating device |
1set |
|
16. |
Stainless steel oil agent box |
1pcs With stainless steel metering pump |
|
17. |
Packing list |
1 pc |
|
18. |
Quality certificate |
1 pc |
|
19. |
User manual |
1 pc |
