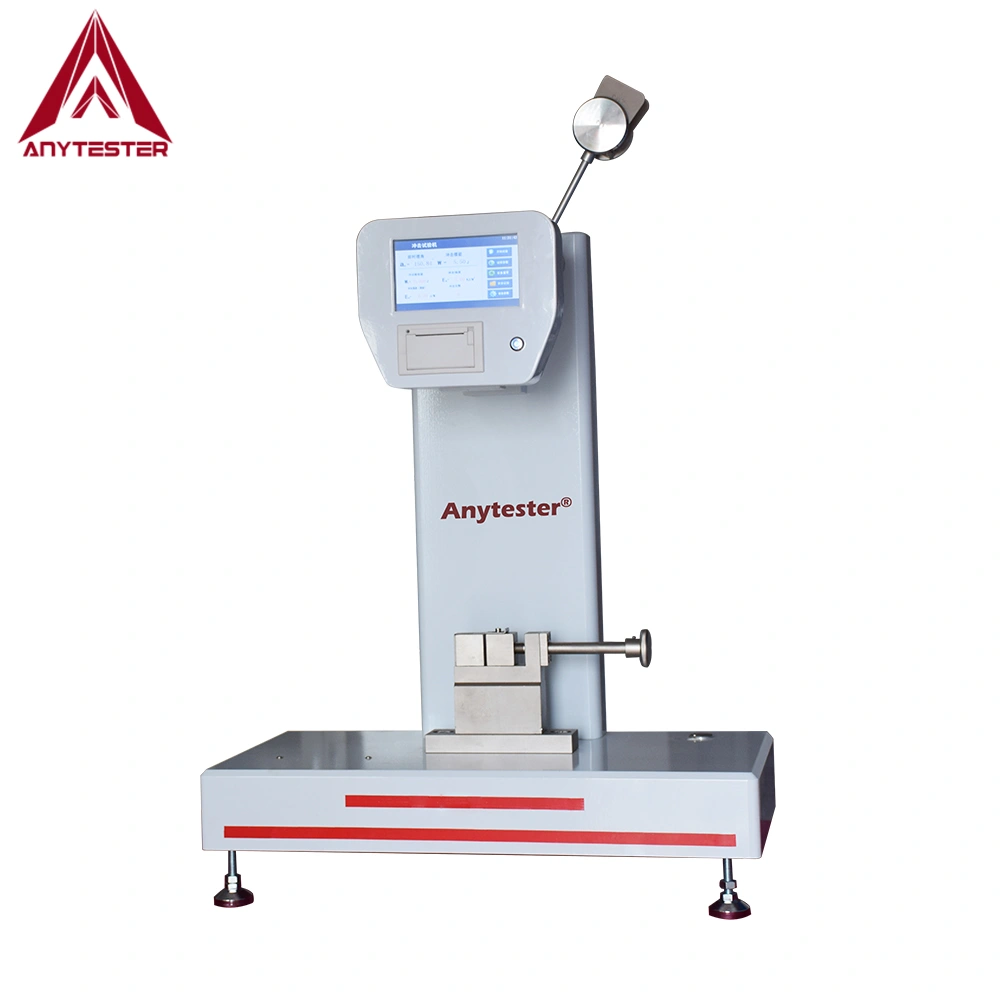

AT422D Series Digital Izod Impact Tester ASTM D256
Product Information
Brand:
Anytester
Model number:
AT422D
AT422D Series Digital Izod Impact Tester is used to determine the impact toughness of non-metallic materials such as rigid plastics, reinforced nylon, glass-reinforced plastics, ceramics, cast stone, electrical insulating materials, etc. This instrument complies with the following international and industry standards. ISO: ISO 180. ASTM: ASTM D256. GB/T: GB/T 1843, JB/T 8761. Digital type, PLC touch screen control and display. Automatically calculate the test result, with mini-printer to print out test result. Can be connected to PC to edit and print test data, also it can be connected to Notch Depth Measuring Device to transmit the accurate sample size to the machine. Automatically correct the energy loss caused by friction and wind resistance, no need to manually calculate and correct. Simple structure, easy to operate. Fast to test, accurate and reliable. Protective cover optional. Technical Specification Model: AT422DA, AT422DB Impact velocity: 3.5m/s Impact energy: 2.75J, 5.5J, 11J, 22J Impact center distance: 335mm Pendulum angle: 150° Distance between striking edge and top surface of jaw: 22.0mm±0.2mm Corner radius of striking edge: R=0.8mm±0.2mm Power supply: AC220V, 50Hz Dimensions: 700×350×850mm Weight: 120kg
Recommended products

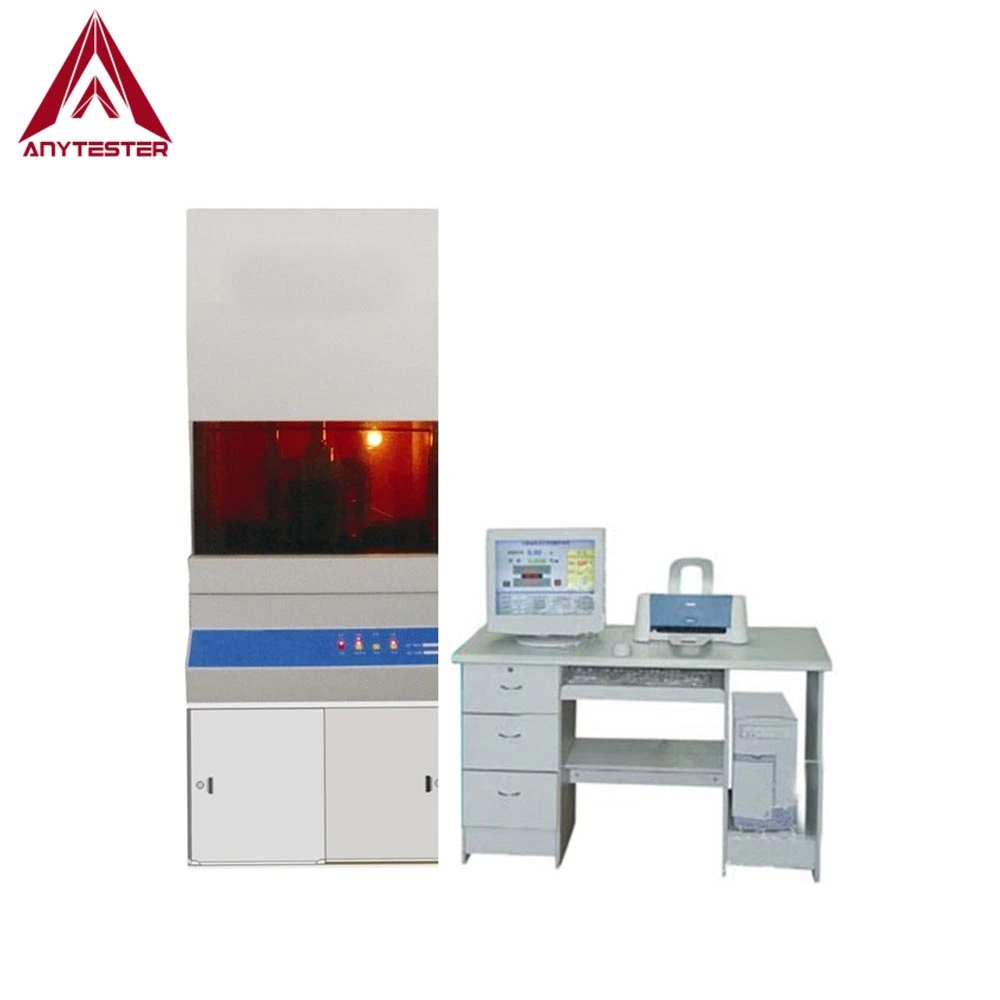

AT332 Mooney Viscometer ASTM D1646
AT332 Mooney Viscometer is used to determine the Mooney viscosity, scorch time and vulcanization index of natural rubber, synthetic rubber and regenerated rubber.

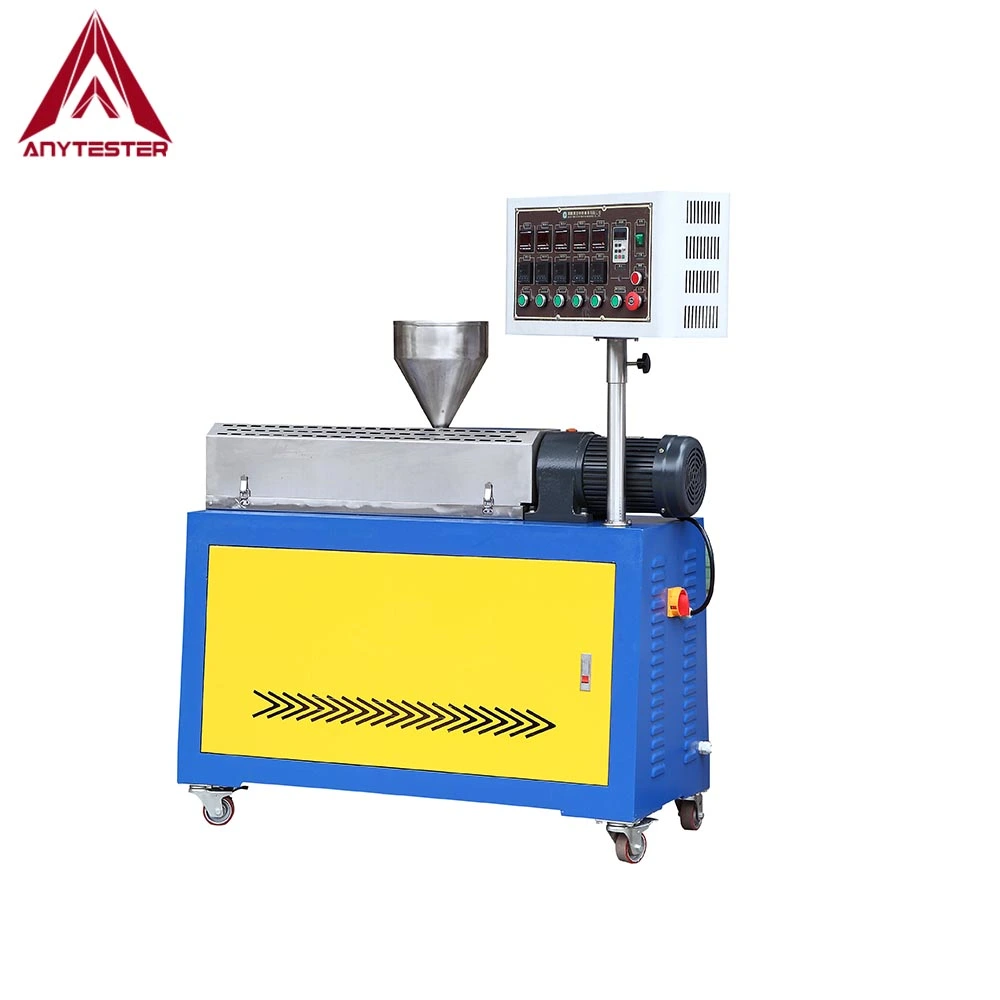

AT394 Lab Single Screw Extruder
AT394Lab Single Screw Extruder (original HY3920) is used for mixing and processing of high molecular polymers such as engineering plastics, modified plastics and color master batches. It is suitable for lab test and quality control, teaching research and small scale production.

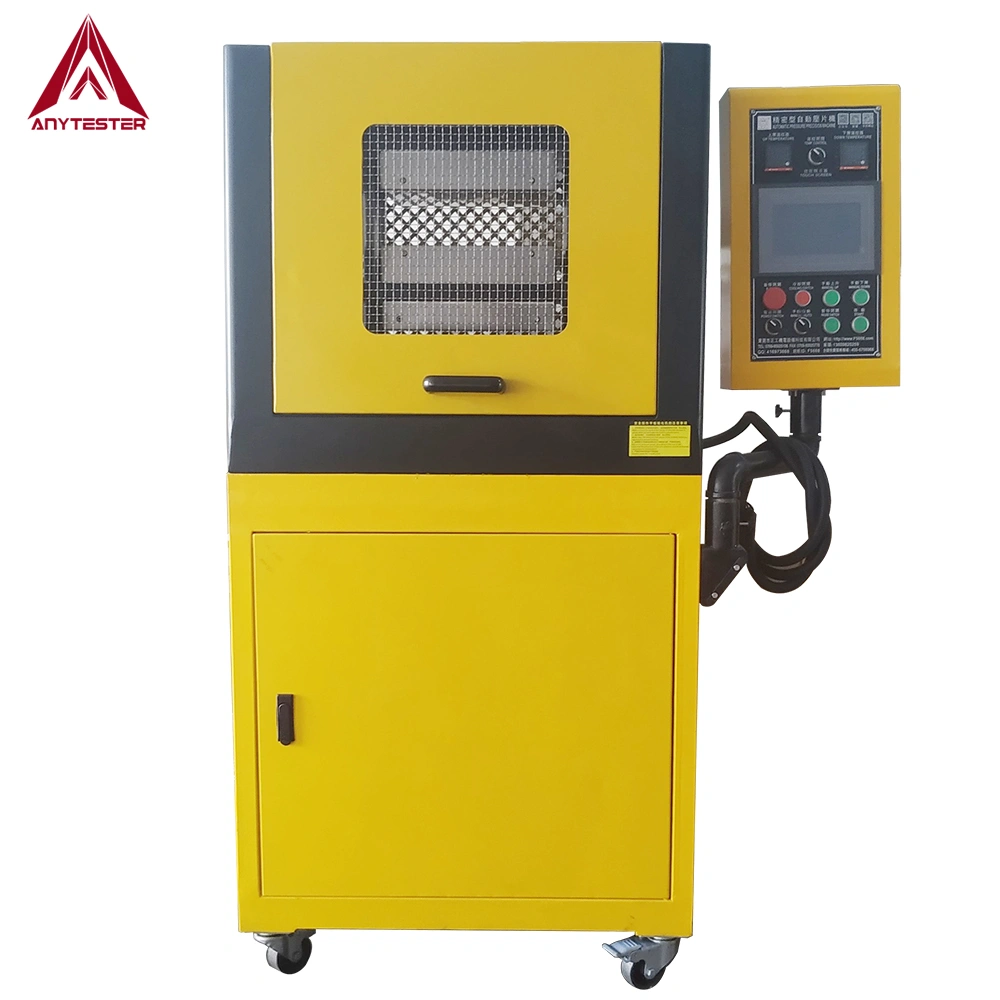

AT391 Series Laboratory Hydraulic Press with Touch Screen Control 10T 20T 30T
AT391 Series Laboratory Hydraulic Press with touch screen control (original HY3891) is used for providing a constant temperature and pressure environment for molding of tensile, impact or other specimens. It is widely used in the automotive, plastics, rubber and textile industry.

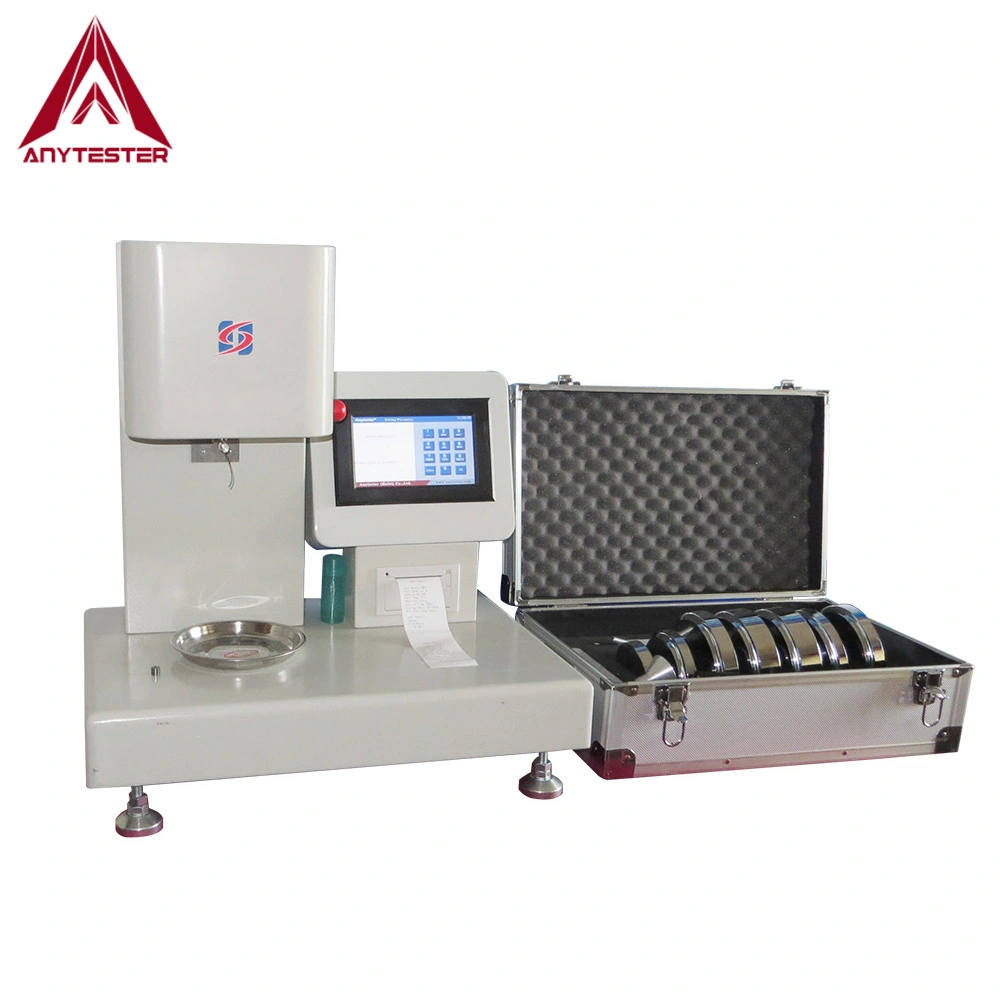

AT430D Melt Flow Index Tester MFR
